AZ1045-04F - Ultra Low Capacitance ESD Protection Array

General Description

AZ1045-04F is a design

Key Features

  • z ESD Protect for Transition Minimized Differential Signaling (TMDS) channels z Protects four I/O lines z Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±15kV (air), ±10kV (contact) z For operating voltage of 5V and below z Ultra low capacitance : 0.5pF typical z Fast turn-on and Low clamping voltage z Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode z Simplified layout for HDMI connectors z Solid-state silicon-avalanche and active circuit.

📥 Download Datasheet

Datasheet Details

Part number AZ1045-04F
Manufacturer Amazing Microelectronic
File Size 304.66 KB
Description Ultra Low Capacitance ESD Protection Array
Datasheet download datasheet AZ1045-04F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ1045 CD Radio Cassette Recoder Philips
AZ100E111 1:9 Differential Clock Driver Arizona
AZ100E116 ECL/PECL Quint Differential Line Receiver Arizona Microtek
AZ100E131 ECL/PECL 4-bit D Flip-Flop Arizona Microtek
AZ100E142 ECL/PECL 9-bit Shift Register Arizona Microtek

Other Datasheets by Amazing Microelectronic

Part Number Description
AZ1045-04SU Ultra Low Capacitance ESD Protection Array
AZ1065-06Q Ultra Low Capacitance ESD Protection Array

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

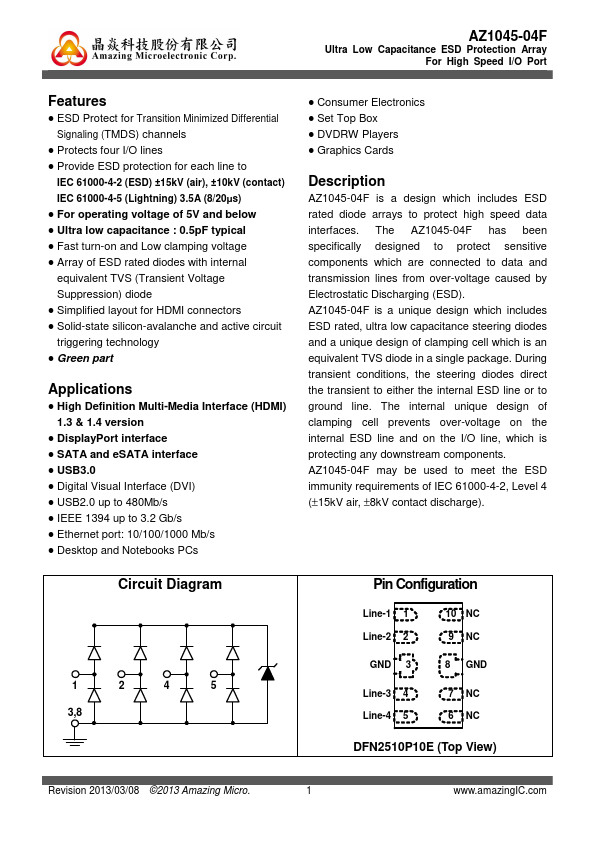

AZ1045-04F Ultra Low Capacitance ESD Protection Array For High Speed I/O Port Features z ESD Protect for Transition Minimized Differential Signaling (TMDS) channels z Protects four I/O lines z Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±15kV (air), ±10kV (contact) z For operating voltage of 5V and below z Ultra low capacitance : 0.5pF typical z Fast turn-on and Low clamping voltage z Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode z Simplified layout for HDMI connectors z Solid-state silicon-avalanche and active circuit triggering technology z Green part Applications z High Definition Multi-Media Interface (HDMI) 1.3 version z DisplayPort interface z SATA and eSATA interface z Digital Visual Interface (DVI) z USB2.
