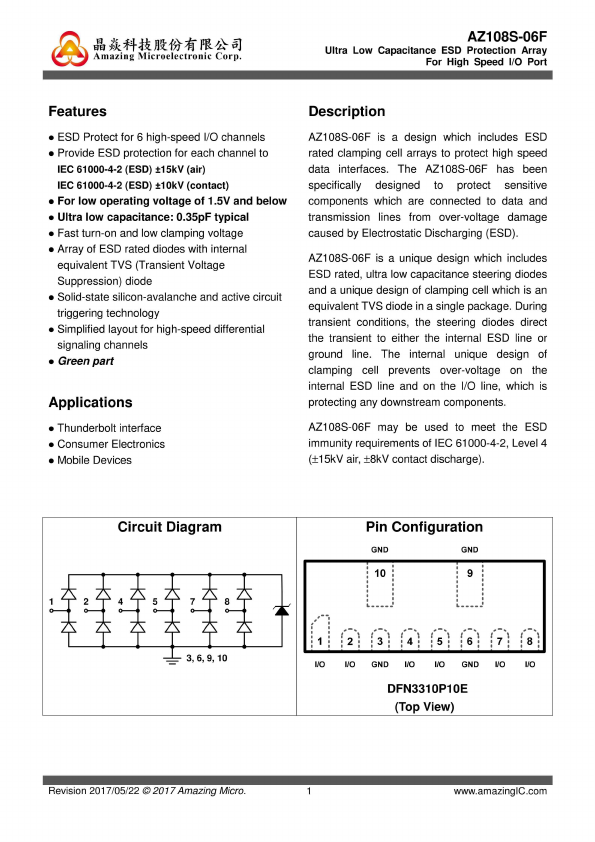

AZ108S-06F
Features
ESD Protect for 6 high-speed I/O channels Provide ESD protection for each channel to
IEC 61000-4-2 (ESD) ±15k V (air) IEC 61000-4-2 (ESD) ±10k V (contact)
For low operating voltage of 1.5V and below Ultra low capacitance: 0.35p F typical Fast turn-on and low clamping voltage Array of ESD rated diodes with internal equivalent TVS (Transient Voltage Suppression) diode Solid-state silicon-avalanche and active circuit triggering technology Simplified layout for high-speed differential signaling channels Green part
Applications
Thunderbolt interface Consumer Electronics Mobile Devices
Description
AZ108S-06F is a design which includes ESD rated clamping cell arrays to protect high speed data interfaces. The AZ108S-06F has been specifically designed to protect sensitive ponents which are connected to data and transmission lines from over-voltage damage caused by Electrostatic Discharging (ESD).
AZ108S-06F is a unique design which includes ESD rated, ultra low capacitance steering...
