Amazing Microelectronic AZ4008-01F

AZ4008-01F is a design which includes a uni-directional ESD rated clamping cell to protect one power line, one control line, or one low-speed data line in an electronic system. The AZ4008-01F has been specifically designed to protect sensitive components which are connected to power and control lines from over-voltage damage caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), Lightning, and Cable Discharge Event (CDE). AZ4008-01F is a unique design which includes proprietary clamping cell in a single package.

Part No.	AZ4008-01F
Datasheet	AZ4008-01F Download
Manufacturer	Amazing Microelectronic
Description	Transient Voltage Suppressing Device
Buy	Stock & Price

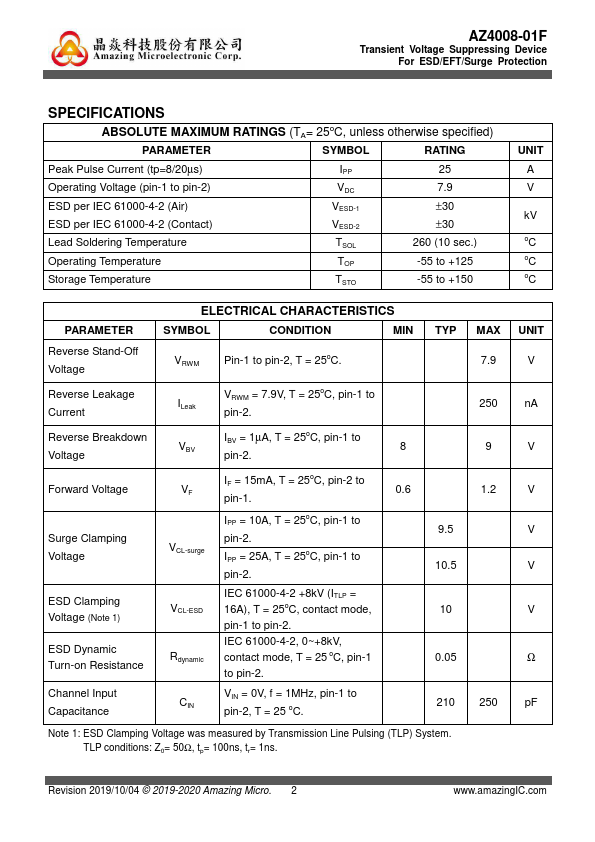

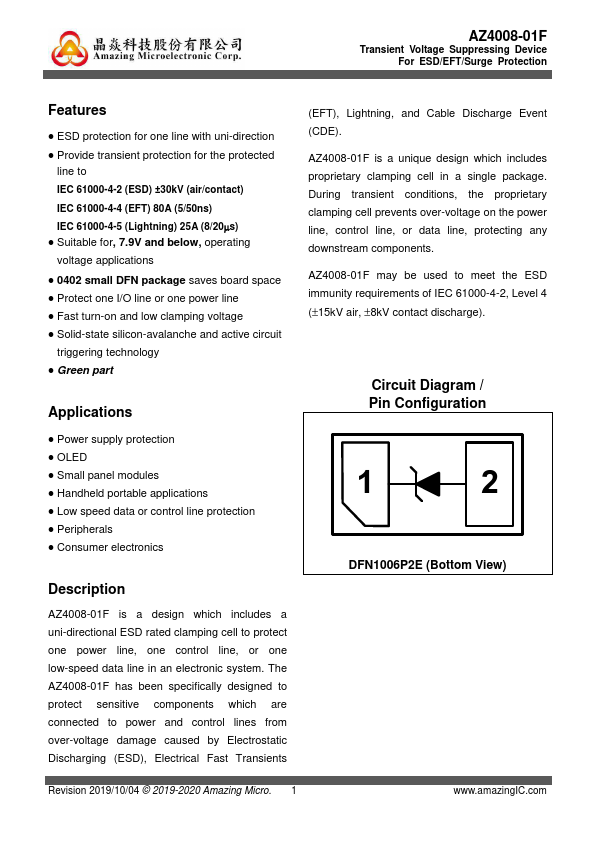

FEATURES

ESD protection for one line with uni-direction Provide transient protection for the protected line to IEC 61000-4-2 (ESD) ±30kV (air/contact) IEC 61000-4-4 (EFT) 80A (5/50ns) IEC 61000-4-5 (Lightning) 25A (8/20µs) Suitable for, 7.9V and below, operating voltage applications 0402 small DFN package saves board space Protect one I/O line or one power line Fast turn-on and low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green part

APPLICATIONS

Power supply protection OLED Small panel modules Handheld portable applications Low speed data or control line protection Peripherals Consumer electronics

DESCRIPTION

During transient conditions, the proprietary clamping cell prevents over-voltage on the power line, control line, or data line, protecting any downstream components. AZ4008-01F may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). Circuit Diagram / Pin Configuration 1 2 DFN1006P2E (Bottom View) Revision 2019/10/04 © 2019-2020 Amazing Micro.
