This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | AZ4008-01G |
|---|---|
| Datasheet | AZ4008-01G AZ4008-01 Datasheet (PDF) |
| File Size | 207.29 KB |
| Manufacturer | Amazing Microelectronic |
| Description | Transient Voltage Suppressing Device |
|
|

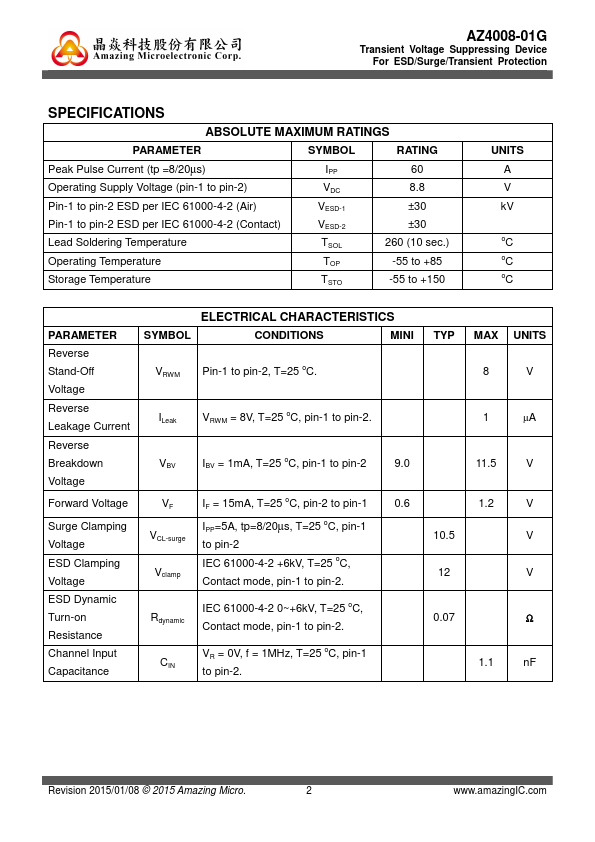

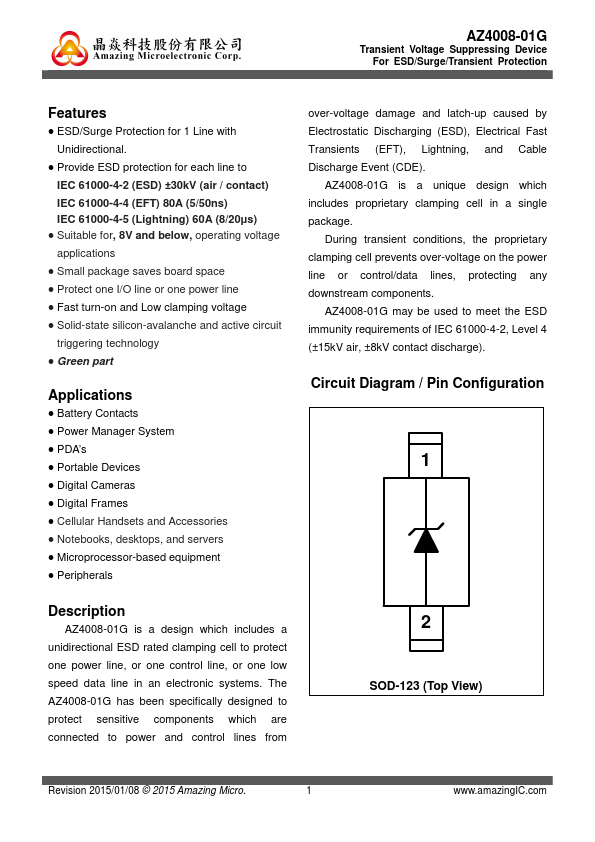

AZ4008-01G is a design which includes a unidirectional ESD rated clamping cell to protect one power line, or one control line, or one low speed data line in an electronic systems. The AZ4008-01G has been specifically designed to protect sensitive ponents which are connected to power and control lines from 2 SOD-123 (Top View) Revision 2015/01/08 © 2015 Amazing Micro. Reverse Leakage Current ILeak VRWM = 8V, T=25 oC,...
