AZ757 - 20 AMP MINIATURE POWER RELAY

American Zettler

Key Features

Low cost 20 Amp switching Quick connect terminals Epoxy sealed version available 10 kV Surge UL, CUR file E44211.

AZ757 20 amp miniature power relay by American Zettler - Datasheet Preview

Datasheet Details

Part number	AZ757
Manufacturer	American Zettler
File Size	168.41 KB
Description	20 AMP MINIATURE POWER RELAY
Datasheet	AZ757 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AZ7500B	Pulse-Width-Modulation Controller	BCD Semiconductor
AZ7500BP	Pulse-Width-Modulation Controller	BCD Semiconductor
AZ7500C	Pulse-Width-Modulation Controller	BCD Semiconductor
AZ7500CP	Pulse-Width-Modulation Controller	BCD Semiconductor
AZ7500E	Pulse-Width-Modulation Controller	BCD Semiconductor

Other Datasheets by American Zettler

Part Number	Description
AZ7555	MINIATURE POWER RELAY
AZ756	20 AMP MINIATURE POWER RELAY
AZ732	MINIATURE POWER RELAY
AZ733	DPDT MINIATURE POWER RELAY
AZ7335	MINIATURE POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

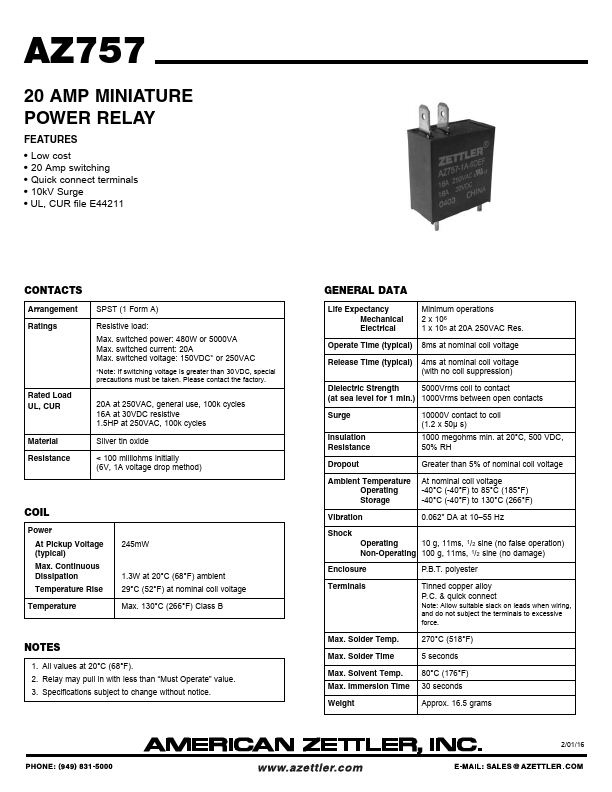

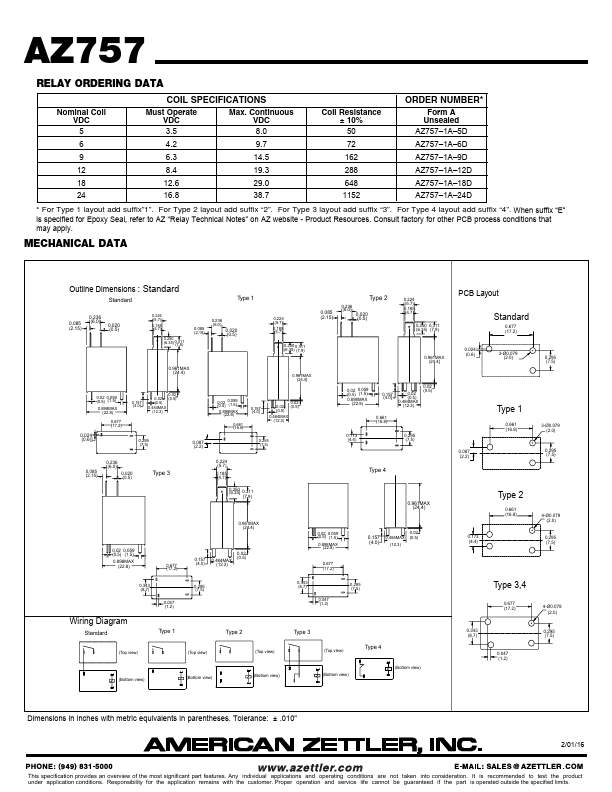

AZ757 www.DataSheet4U.com 20 AMP MINIATURE POWER RELAY FEATURES • • • • • • Low cost 20 Amp switching Quick connect terminals Epoxy sealed version available 10 kV Surge UL, CUR file E44211 CONTACTS Arrangement Ratings SPST (1 Form A) Resistive load: Max. switched power: 480 W or 5000 VA Max. switched current: 20 A Max. switched voltage: 150* VDC or 400 VAC *Note: If switching voltage is greater than 30 VDC, special GENERAL DATA Life Expectancy Mechanical Electrical Operate Time (typical) Release Time (typical) Minimum operations 1 x 107 1 x 105 at 20 A 250 VAC Res. 8 ms at nominal coil voltage 4 ms at nominal coil voltage (with no coil suppression) precautions must be taken. Please contact the factory.
