AZ8-1CH-xxx - (AZ8 Series) Miniature PC Board Relay
American Zettler
Download the AZ8-1CH-xxx datasheet PDF.
This datasheet also covers the AZ8-1CH-12DE variant, as both devices belong to the same (az8 series) miniature pc board relay family and are provided as variant models within a single manufacturer datasheet.
Key Features
Subminiature size High sensitivity, 110 mW pickup Coils to 48 VDC Hermetically sealed version available Epoxy sealed for automatic wave soldering Contacts rated at 3, 6 or 10 Amps Withstands 6 kV IEEE Lightning Surge (special order) Class B insulation (130°C) standard Class F insulation (155°C) version available UL, CUR file E44211 VDE approved versions available.
Note: The manufacturer provides a single datasheet file (AZ8-1CH-12DE_AmericanZettler.pdf) that lists specifications for multiple related part numbers.
Full PDF Text Transcription for AZ8-1CH-xxx (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
AZ8-1CH-xxx. For precise diagrams, and layout, please refer to the original PDF.

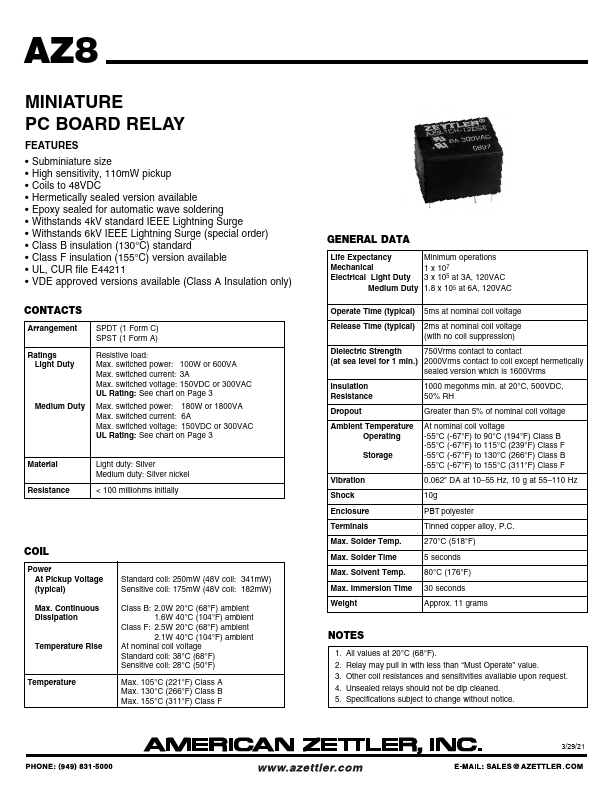

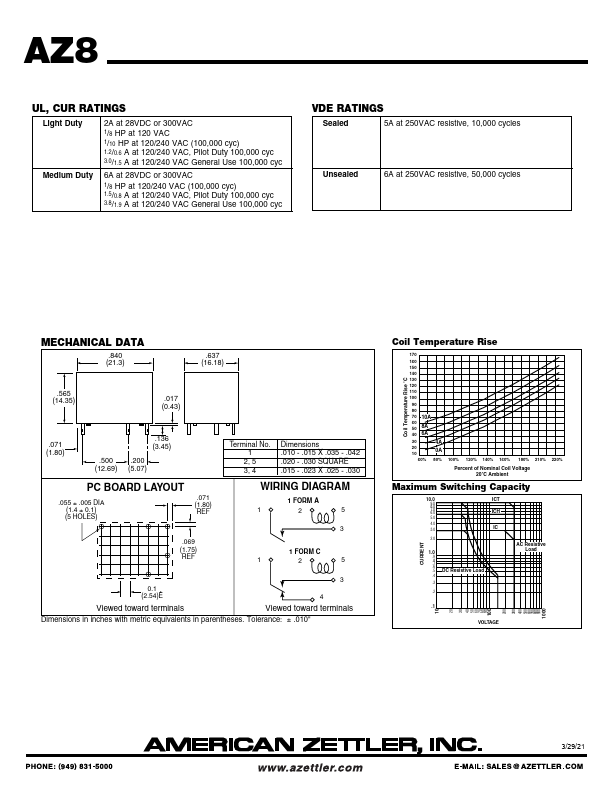

www.DataSheet4U.com AZ8 MINIATURE PC BOARD RELAY FEATURES • • • • • • • • • • • Subminiature size High sensitivity, 110 mW pickup Coils to 48 VDC Hermetically sealed vers...
View more extracted text
gh sensitivity, 110 mW pickup Coils to 48 VDC Hermetically sealed version available Epoxy sealed for automatic wave soldering Contacts rated at 3, 6 or 10 Amps Withstands 6 kV IEEE Lightning Surge (special order) Class B insulation (130°C) standard Class F insulation (155°C) version available UL, CUR file E44211 VDE approved versions available GENERAL DATA Life Expectancy Mechanical Electrical Light Duty Medium Duty Heavy Duty Operate Time (typical) Minimum operations 100 million operations 3 x 105 at 3 A, 120 VAC 1.
AZ8-1CH-xxx Datasheet
