AZ8-1CT-xxx - (AZ8 Series) Miniature PC Board Relay

This page provides the datasheet information for the AZ8-1CT-xxx, a member of the AZ8-1CH-12DE (AZ8 Series) Miniature PC Board Relay family.

Features

  • Subminiature size High sensitivity, 110 mW pickup Coils to 48 VDC Hermetically sealed version available Epoxy sealed for automatic wave soldering Contacts rated at 3, 6 or 10 Amps Withstands 6 kV IEEE Lightning Surge (special order) Class B insulation (130°C) standard Class F insulation (155°C) version available UL, CUR file E44211 VDE approved versions available.

📥 Download Datasheet

Datasheet preview – AZ8-1CT-xxx

Datasheet Details

Part number AZ8-1CT-xxx
Manufacturer American Zettler
File Size 304.14 KB
Description (AZ8 Series) Miniature PC Board Relay
Datasheet download datasheet AZ8-1CT-xxx Datasheet
Additional preview pages of the AZ8-1CT-xxx datasheet.

📁 Similar Datasheet

  • AZ820K - Ceramic Composite Resistors (OHMITE)
  • AZ821 - (AZ831 / AZ821) SUBMINIATURE DIP RELAY (ETC)
  • AZ821K - Ceramic Composite Resistors (OHMITE)
  • AZ822 - SUBMINIATURE DIP RELAY (ZETTLER)
  • AZ82GK - Ceramic Composite Resistors (OHMITE)
  • AZ831 - (AZ831 / AZ821) SUBMINIATURE DIP RELAY (ETC)
  • AZ833 - MICROMINIATURE POLARIZED RELAY (ETC)
  • AZ8462 - MICROMINIATURE POLARIZED RELAY (Zettler)
  • AZ850 - MICROMINIATURE (ETC)
  • AZ852 - MICROMINIATURE POLARIZED RELAY (ETC)
Other Datasheets by American Zettler

Full PDF Text Transcription

Click to expand full text

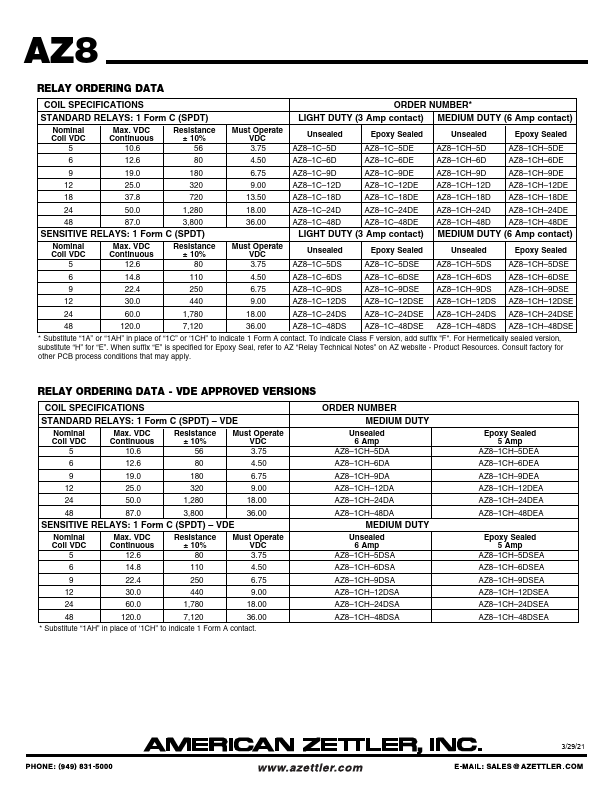

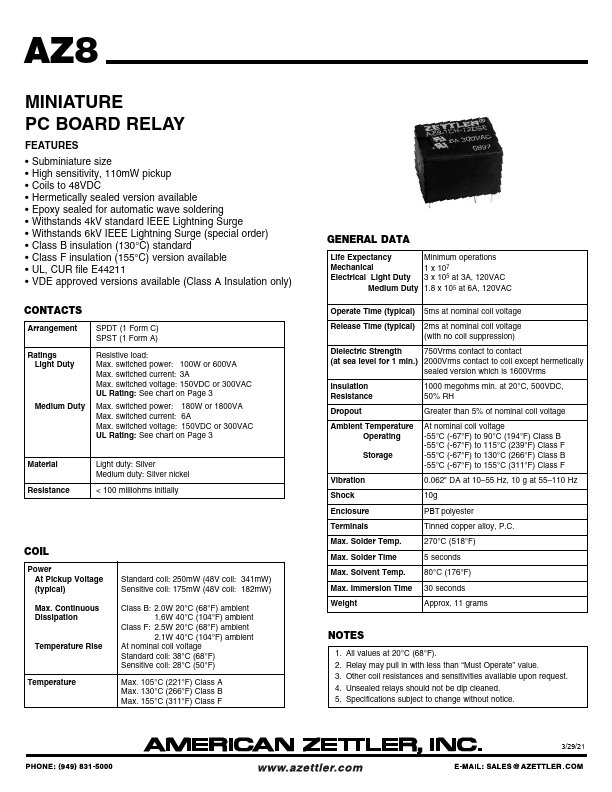

www.DataSheet4U.com AZ8 MINIATURE PC BOARD RELAY FEATURES • • • • • • • • • • • Subminiature size High sensitivity, 110 mW pickup Coils to 48 VDC Hermetically sealed version available Epoxy sealed for automatic wave soldering Contacts rated at 3, 6 or 10 Amps Withstands 6 kV IEEE Lightning Surge (special order) Class B insulation (130°C) standard Class F insulation (155°C) version available UL, CUR file E44211 VDE approved versions available GENERAL DATA Life Expectancy Mechanical Electrical Light Duty Medium Duty Heavy Duty Operate Time (typical) Minimum operations 100 million operations 3 x 105 at 3 A, 120 VAC 1.
