AZ9405 - MINIATURE POWER RELAY

American Zettler

Key Features

10 Amp switching capability.
SPST-N. O. and SPDT configurations.
4 kV dielectric strength.
Epoxy sealed version available.
Class F insulation system standard.
UL, CUR file E44211.
TUV R50290833.

AZ9405 miniature power relay by American Zettler - Datasheet Preview

Datasheet Details

Part number	AZ9405
Manufacturer	American Zettler
File Size	496.31 KB
Description	MINIATURE POWER RELAY
Datasheet	AZ9405 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AZ942	16 AMP MINIATURE PC BOARD RELAY	ETC
AZ942-1CH-12D	16 AMP MINIATURE PC BOARD RELAY	ETC
AZ942-1CH-12DE	16 AMP MINIATURE PC BOARD RELAY	ETC
AZ942-1CH-24D	16 AMP MINIATURE PC BOARD RELAY	ETC
AZ942-1CH-24DE	16 AMP MINIATURE PC BOARD RELAY	ETC

Other Datasheets by American Zettler

Part Number	Description
AZ943T	SUBMINIATURE RELAY
AZ920	ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ9375	SUBMINIATURE RELAY
AZ9731F	RELAY
AZ9731T	RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

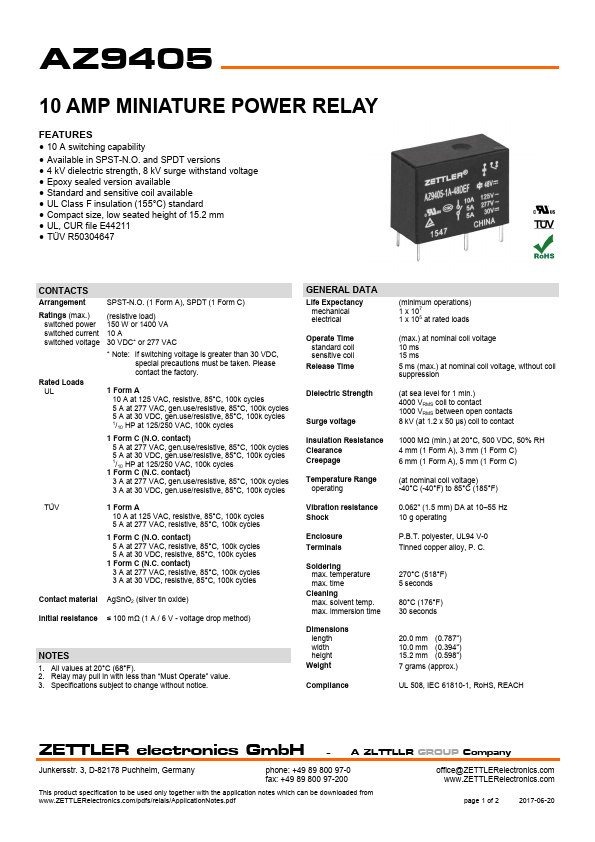

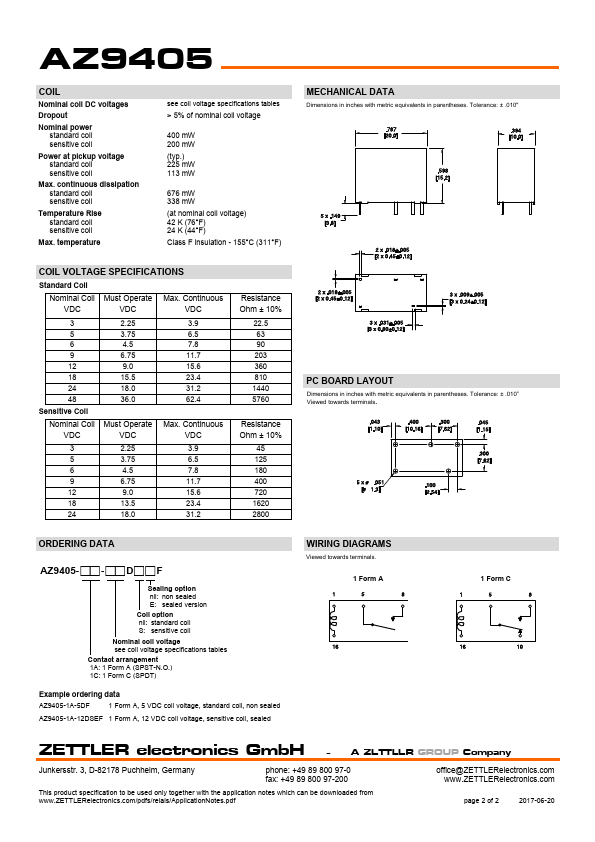

AZ9405 10 AMP MINIATURE POWER RELAY FEATURES • 10 Amp switching capability • SPST-N.O. and SPDT configurations • 4 kV dielectric strength • Epoxy sealed version available • Class F insulation system standard • UL, CUR file E44211 • TUV R50290833 CONTACTS Arrangement SPST N.O. (1 Form A) SPDT (1 Form C) Ratings Resistive load: Max. switched power: 150 W or 1400 VA N.O. 90 W or 850 VA N.C. Max. switched current:10 A N.O., 3 A N.C.. Max. switched voltage: 30 VDC or 277 VAC UL, CUR (N.O.) (N.C.) 10 A at 125 VAC, Res., 100k cycles, 85°C 5 A at 277 VAC, Res., 100k cycles, 85°C 5 A at 30 VDC, Res., 100k cycles, 85°C 1/10 HP at 125 VAC, 100k cycles, 85°C 1/10 HP at 250 VAC, 100k cycles, 85°C 3 A at 277 VAC Res., 100k cycles, 85°C 3 A at 30 VDC Res.
