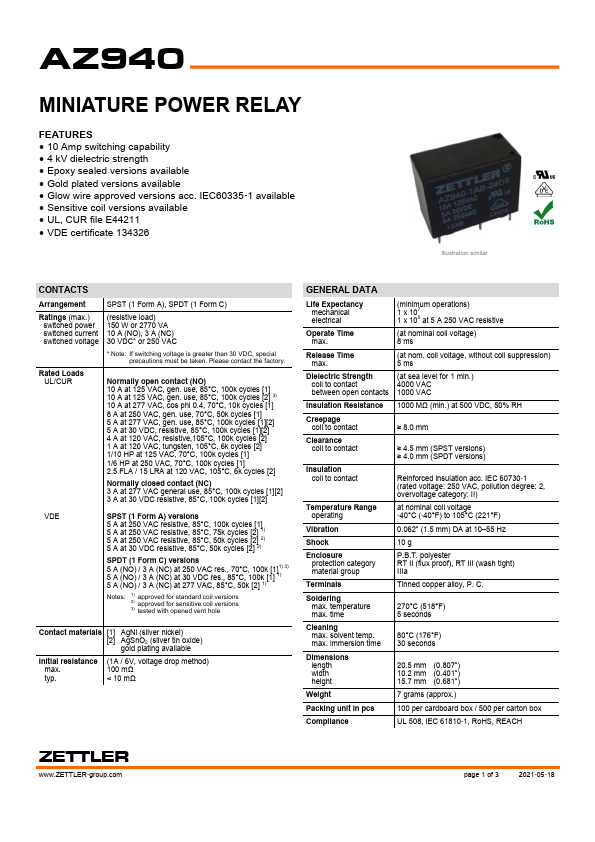

AZ940
Overview
- 10 Amp switching capability
- 4 kV dielectric strength
- Epoxy sealed versions available
- Gold plated versions available
- Glow wire approved versions acc. IEC60335-1 available
- Sensitive coil versions available
- UL, CUR file E44211
- VDE certificate 134326 Illustration similar CONTACTS Arrangement SPST (1 Form A), SPDT (1 Form C) Ratings (max.) switched power switched current switched voltage (resistive load) 150 W or 2770 VA 10 A (NO), 3 A (NC) 30 VDC* or 250 VAC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. Rated Loads UL/CUR Normally open contact (NO) 10 A at 125 VAC, gen. use, 85°C, 100k cycles [1] 10 A at 125 VAC, gen. use, 85°C, 100k cycles [2] 3) 10 A at 277 VAC, cos phi 0.4, 70°C, 10k cycles [1] 8 A at 250 VAC, gen. use, 70°C, 50k cycles [1] 5 A at 277 VAC, gen. use, 85°C, 100k cycles [1][2] 5 A at 30 VDC, resistive, 85°C, 100k cycles [1][2] 4 A at 120 VAC, resistive,105°C, 100k cycles [2] 1 A at 120 VAC, tungsten, 105°C, 6k cycles [2] 1/10 HP at 125 VAC, 70°C, 100k cycles [1] 1/6 HP at 250 VAC, 70°C, 100k cycles [1] 2.5 FLA / 15 LRA at 120 VAC, 105°C, 6k cycles [2] Normally closed contact (NC) 3 A at 277 VAC general use, 85°C, 100k cycles [1][2] 3 A at 30 VDC resistive, 85°C, 100k cycles [1][2] VDE SPST (1 Form A) versions 5 A at 250 VAC resistive, 85°C, 100k cycles [1] 5 A at 250 VAC resistive, 85°C, 75k cycles [2] 1) 5 A at 250 VAC resistive, 85°C, 50k cycles [2] 2) 5 A at 30 VDC resistive, 85°C, 50k cycles [2] 2) SPDT (1 Form C) versions 5 A (NO) / 3 A (NC) at 250 VAC res., 70°C, 100k [1]1) 3) 5 A (NO) / 3 A (NC) at 30 VDC res., 85°C, 100k [1] 1) 5 A (NO) / 3 A (NC) at 277 VAC, 85°C, 50k [2] 1) Notes: 1) approved for standard coil versions 2) approved for sensitive coil versions 3) tested with opened vent hole Contact materials [1] AgNi (silver nickel) [2] AgSnO2 (silver tin oxide) gold plating a
