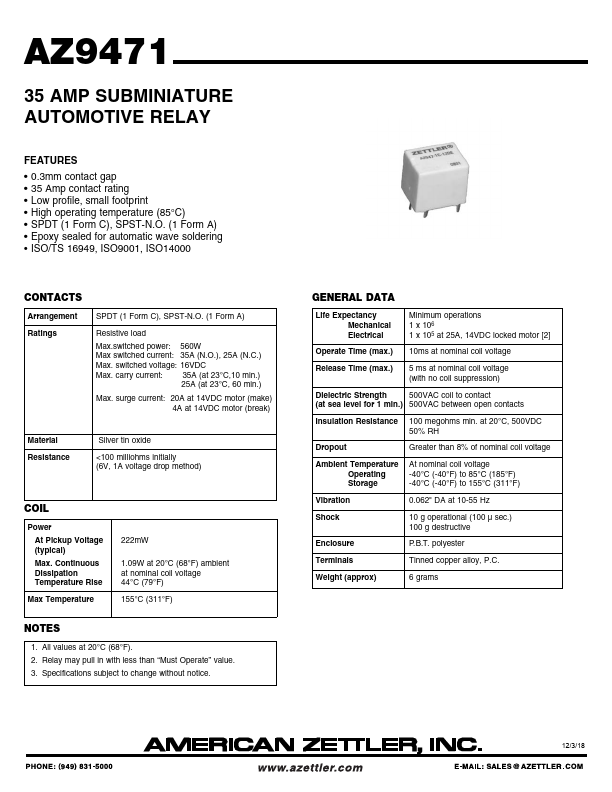

AZ9471
Overview
- 0.3mm contact gap
- 35 Amp contact rating
- Low profile, small footprint
- High operating temperature (85°C)
- SPDT (1 Form C), SPST-N.O. (1 Form A)
- Epoxy sealed for automatic wave soldering
- ISO/TS 16949, ISO9001, ISO14000 CONTACTS Arrangement Ratings SPDT (1 Form C), SPST-N.O. (1 Form A) Resistive load power: 560W Max switched current: 35A (N.O.), 25A (N.C.) Max. switched voltage: 16VDC Max. carry current: 35A (at 23°C,10 min.) 25A (at 23°C, 60 min.) Max. surge current: 20A at 14VDC motor (make) 4A at 14VDC motor (break) Material Resistance Silver tin oxide <100 milliohms initially (6V, 1A voltage drop method) COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise Max Temperature 222mW
- 09W at 20°C (68°F) ambient at nominal coil voltage 44°C (79°F) 155°C (311°F) NOTES
- All values at 20°C (68°F).

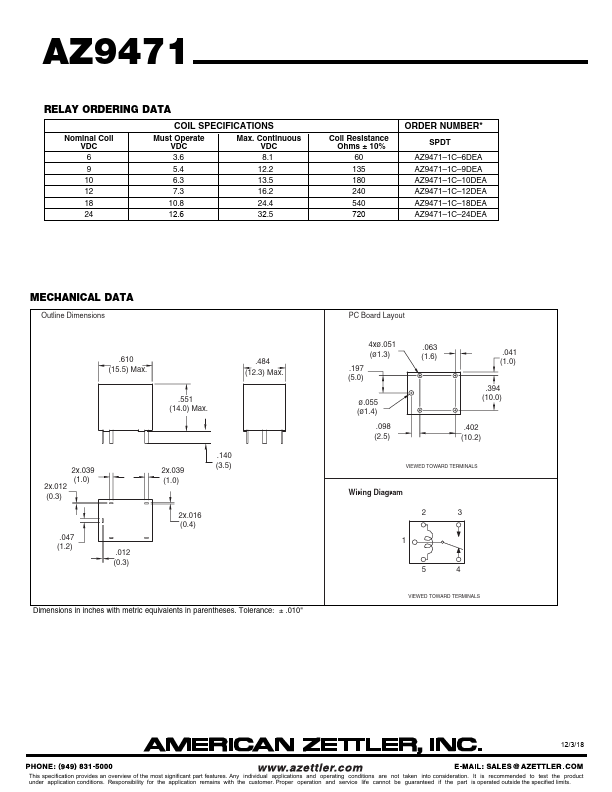

- Relay may pull in with less than “Must Operate” value.
