AZ947 - POWER RELAY

Key Features

  • Low cost.
  • 20 Amp contact rating.
  • Low profile, small footprint.
  • High operating temperature (85°C).
  • SPST (1 Form A), SPDT (1 Form C).
  • ISO/TS 16949, ISO 14001.

📥 Download Datasheet

Datasheet Details

Part number AZ947
Manufacturer Zettler
File Size 78.93 KB
Description POWER RELAY
Datasheet download datasheet AZ947 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ9405 MINIATURE POWER RELAY American Zettler
AZ942 16 AMP MINIATURE PC BOARD RELAY ETC
AZ942-1CH-12D 16 AMP MINIATURE PC BOARD RELAY ETC
AZ942-1CH-12DE 16 AMP MINIATURE PC BOARD RELAY ETC
AZ942-1CH-24D 16 AMP MINIATURE PC BOARD RELAY ETC

Other Datasheets by Zettler

Part Number Description
AZ943 MINIATURE PC BOARD RELAY
AZ9481 16 AMP LOW PROFILE POWER RELAY
AZ9201 ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ921 ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ9371 SENSITIVE SUBMINIATURE RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

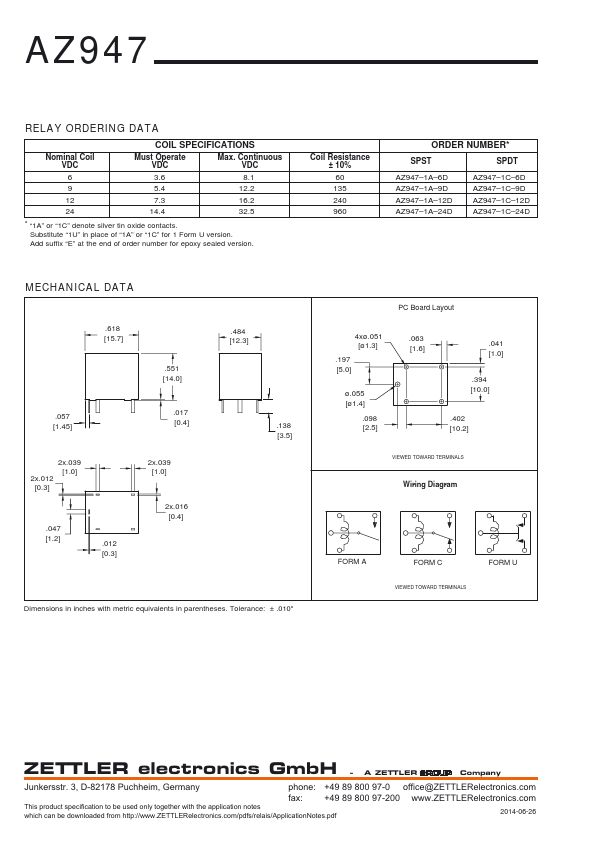

AZ947 20 AMP SUBMINIATURE PCB POWER RELAY FOR AUTOMOTIVE USE FEATURES • Low cost • 20 Amp contact rating • Low profile, small footprint • High operating temperature (85°C) • SPST (1 Form A), SPDT (1 Form C) • ISO/TS 16949, ISO 14001 CONTACTS Arrangement SPST (1 Form A) SPST NODM (1 Form U) SPDT (1 Form C) Ratings Resistive load: Max. switched power: 280 W, 1250 VA Max. switched voltage: 50 VDC* or 250 VAC * Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. 20 A at 14 VDC Res. (make) 15 A at 14 VDC Res. (break) Material Resistance Silver tin oxide < 50 milliohms initially (6 V, 1 A voltage drop method) COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise Max Temperature 222 mW 1.
