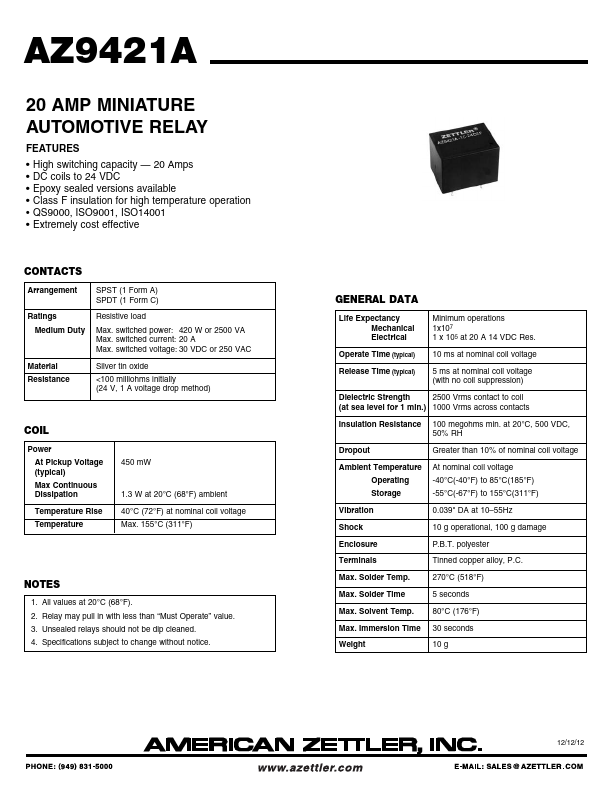

AZ9421A
FEATURES
- High switching capacity
- 20 Amps
- DC coils to 24 VDC
- Epoxy sealed versions available
- Class F insulation for high temperature operation
- QS9000, ISO9001, ISO14001
- Extremely cost effective
CONTACTS
Arrangement
SPST (1 Form A) SPDT (1 Form C)
Ratings Medium Duty
Resistive load
Max. switched power: 420 W or 2500 VA Max. switched current: 20 A Max. switched voltage: 30 VDC or 250 VAC
Material Resistance
Silver tin oxide
<100 milliohms initially (24 V, 1 A voltage drop method)
COIL
Power At Pickup Voltage (typical) Max Continuous Dissipation
Temperature Rise Temperature
450 m W
1.3 W at 20°C (68°F) ambient 40°C (72°F) at nominal coil voltage Max. 155°C (311°F)
NOTES
1. All values at 20°C (68°F). 2. Relay may pull in with less than “Must Operate” value. 3. Unsealed relays should not be dip cleaned. 4. Specifications subject to change without notice.
GENERAL DATA
Life Expectancy Mechanical Electrical
Minimum operations 1x107 1 x 105 at 20 A 14 VDC Res.

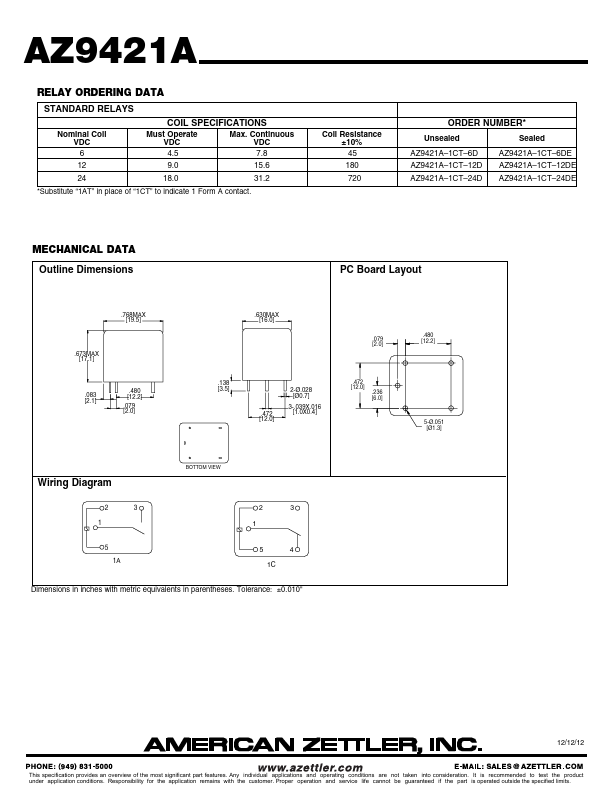

Operate...
