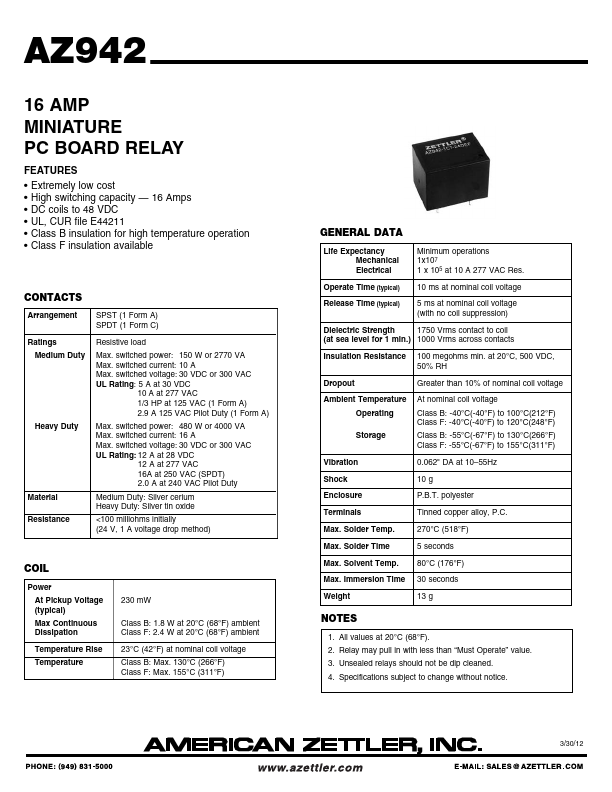

AZ942
FEATURES
- Extremely low cost
- High switching capacity
- 16 Amps
- DC coils to 48 VDC
- UL, CUR file E44211
- Class B insulation for high temperature operation
- Class F insulation available
CONTACTS
Arrangement
SPST (1 Form A) SPDT (1 Form C)
Ratings Medium Duty
Heavy Duty
Material Resistance
Resistive load
Max. switched power: 150 W or 2770 VA Max. switched current: 10 A Max. switched voltage: 30 VDC or 300 VAC UL Rating: 5 A at 30 VDC
10 A at 277 VAC 1/3 HP at 125 VAC (1 Form A) 2.9 A 125 VAC Pilot Duty (1 Form A)
Max. switched power: 480 W or 4000 VA Max. switched current: 16 A Max. switched voltage: 30 VDC or 300 VAC UL Rating: 12 A at 28 VDC
12 A at 277 VAC 16A at 250 VAC (SPDT) 2.0 A at 240 VAC Pilot Duty
Medium Duty: Silver cerium Heavy Duty: Silver tin oxide
<100 milliohms initially (24 V, 1 A voltage drop method)
COIL
Power At Pickup Voltage (typical) Max Continuous Dissipation
Temperature Rise Temperature
230 m W
Class B: 1.8 W at 20°C (68°F) ambient Class F: 2.4 W...
