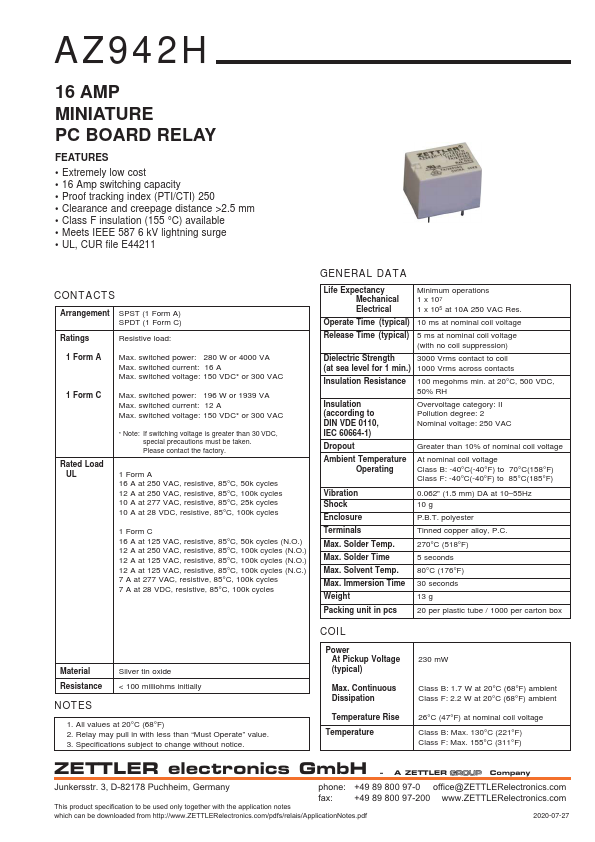

AZ942H
FEATURES
- Extremely low cost
- 16 Amp switching capacity
- Proof tracking index (PTI/CTI) 250
- Clearance and creepage distance >2.5 mm
- Class F insulation (155 °C) available
- Meets IEEE 587 6 k V lightning surge
- UL, CUR file E44211
CONTACTS
Arrangement SPST (1 Form A) SPDT (1 Form C)
Ratings
Resistive load:
1 Form A
Max. switched power: 280 W or 4000 VA Max. switched current: 16 A Max. switched voltage: 150 VDC- or 300 VAC
1 Form C
Max. switched power: 196 W or 1939 VA Max. switched current: 12 A Max. switched voltage: 150 VDC- or 300 VAC
Rated Load UL
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
1 Form A 16 A at 250 VAC, resistive, 85°C, 50k cycles 12 A at 250 VAC, resistive, 85°C, 100k cycles 10 A at 277 VAC, resistive, 85°C, 25k cycles 10 A at 28 VDC, resistive, 85°C, 100k cycles
1 Form C 16 A at 125 VAC, resistive, 85°C, 50k cycles (N.O.) 12 A at 250 VAC, resistive, 85°C, 100k cycles (N.O.) 12 A...
