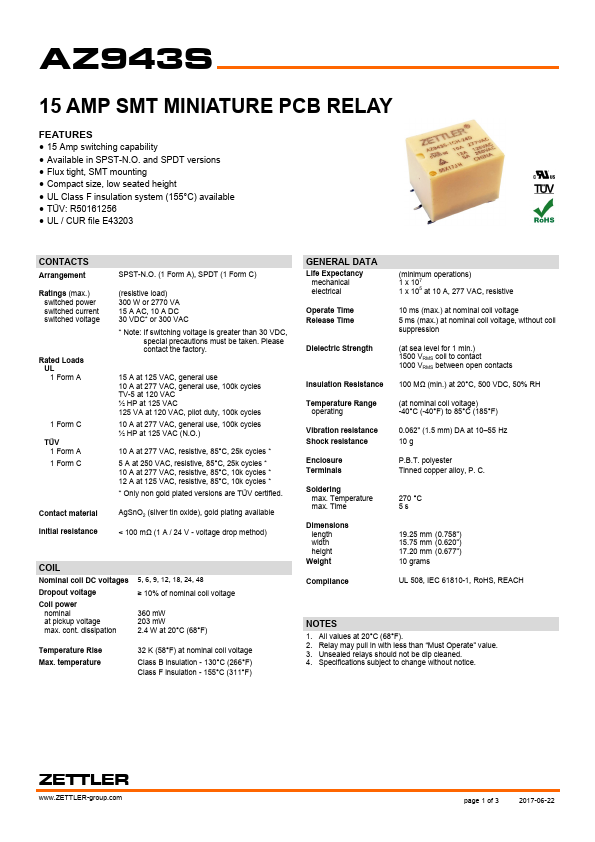

AZ943S
Overview
- 15 Amp switching capability
- Available in SPST-N.O. and SPDT versions
- Flux tight, SMT mounting
- Compact size, low seated height
- UL Class F insulation system (155°C) available
- TÜV: R50161256
- UL / CUR file E43203 CONTACTS Arrangement Ratings (max.) switched power switched current switched voltage Rated Loads UL 1 Form A 1 Form C TÜV 1 Form A 1 Form C Contact material Initial resistance SPST-N.O. (1 Form A), SPDT (1 Form C) (resistive load) 300 W or 2770 VA 15 A AC, 10 A DC 30 VDC* or 300 VAC * Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. 15 A at 125 VAC, general use 10 A at 277 VAC, general use, 100k cycles TV-5 at 120 VAC ½ HP at 125 VAC 125 VA at 120 VAC, pilot duty, 100k cycles 10 A at 277 VAC, general use, 100k cycles ½ HP at 125 VAC (N.O.) 10 A at 277 VAC, resistive, 85°C, 25k cycles * 5 A at 250 VAC, resistive, 85°C, 25k cycles * 10 A at 277 VAC, resistive, 85°C, 10k cycles * 12 A at 125 VAC, resistive, 85°C, 10k cycles * * Only non gold plated versions are TÜV certified. AgSnO2 (silver tin oxide), gold plating available < 100 mΩ (1 A / 24 V - voltage drop method) COIL Nominal coil DC voltages Dropout voltage Coil power nominal at pickup voltage max. cont. dissipation
