AZ943 - MINIATURE PC BOARD RELAY

Key Features

  • High performance Low seated height Flux tight and sealed versions available UL, CUR file E43203 Class B insulation (130°C) standard.

📥 Download Datasheet

Datasheet Details

Part number AZ943
Manufacturer Zettler
File Size 67.16 KB
Description MINIATURE PC BOARD RELAY
Datasheet download datasheet AZ943 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ943S 15 AMP MINIATURE PC BOARD RELAY SMT ZETTLER Electronics
AZ943T SUBMINIATURE RELAY American Zettler
AZ9405 MINIATURE POWER RELAY American Zettler
AZ942 16 AMP MINIATURE PC BOARD RELAY ETC
AZ942-1CH-12D 16 AMP MINIATURE PC BOARD RELAY ETC

Other Datasheets by Zettler

Part Number Description
AZ947 POWER RELAY
AZ9481 16 AMP LOW PROFILE POWER RELAY
AZ9201 ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ921 ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ9371 SENSITIVE SUBMINIATURE RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

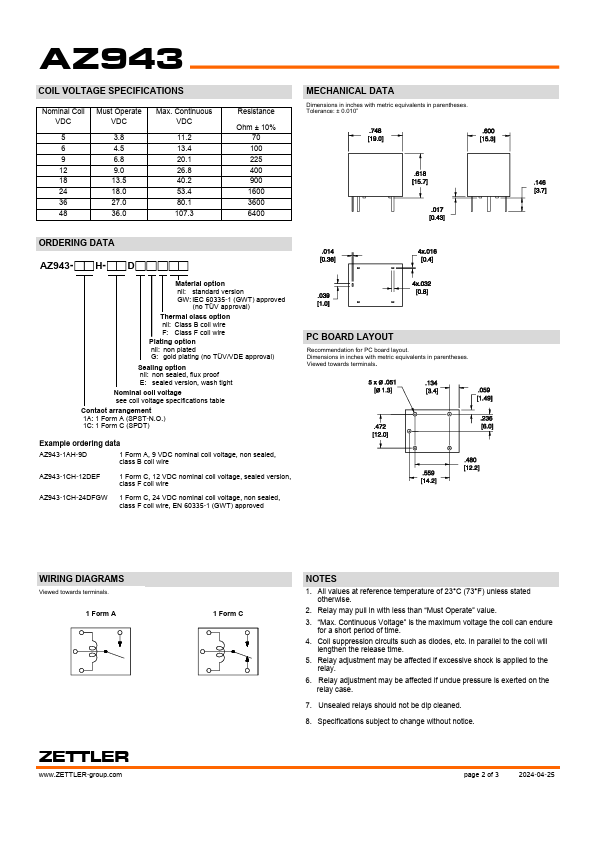

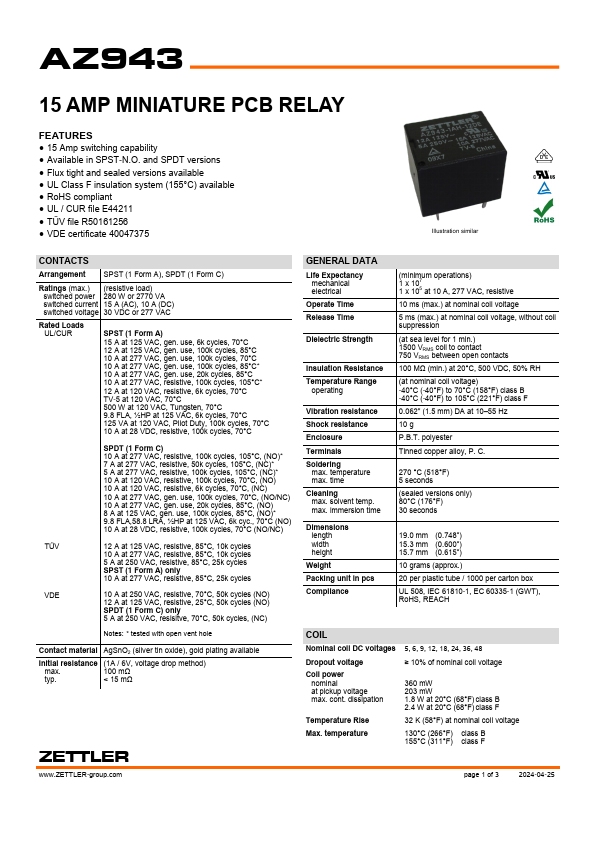

AZ943 15 AMP MINIATURE PC BOARD RELAY FEATURES • • • • • High performance Low seated height Flux tight and sealed versions available UL, CUR file E43203 Class B insulation (130°C) standard CONTACTS Arrangement Ratings SPST (1 Form A) SPDT (1 Form C) Form A and C Max. switched power: 210 W or 2770 VA Max. switched current: 15 A AC, 7 A DC Max. switched voltage: 30 VDC or 300 VAC GENERAL DATA Life Expectancy Mechanical Electrical Operate Time 1 x 106 1 x 105 at rated load 10 ms max. 5 ms max. (with no coil suppression) 1500 Vrms contact to coil 1000 Vrms across contacts 100 megohms min. at 500 VDC, 50% RH Greater than 10% of nominal coil voltage At nominal coil voltage -40°C(-40°F) to 95°C(203°F) -40°C(-40°F) to 130°C(266°F) 0.062" DA at 10–55 Hz 10 g P.B.T.
