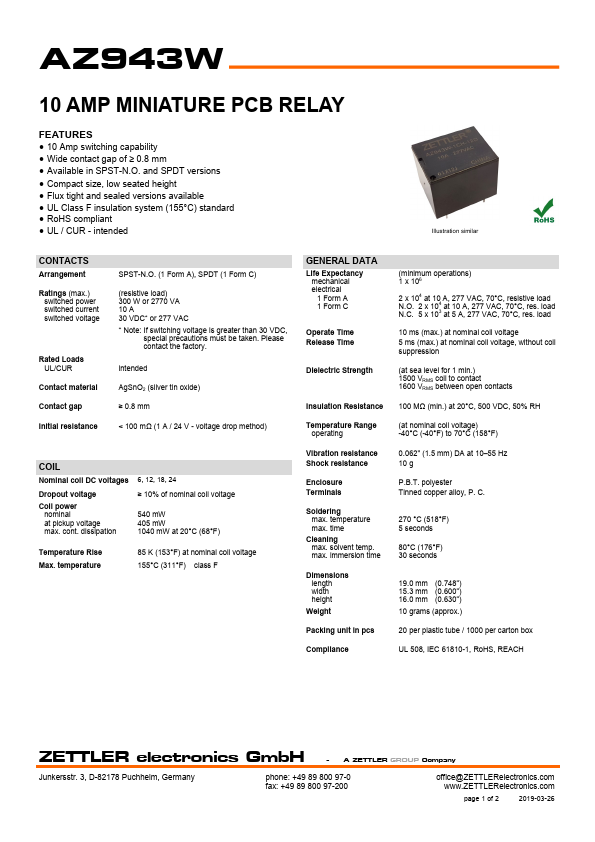

AZ943W
FEATURES
- 10 Amp switching capability
- Wide contact gap of ≥ 0.8 mm
- Available in SPST-N.O. and SPDT versions
- pact size, low seated height
- Flux tight and sealed versions available
- UL Class F insulation system (155°C) standard
- Ro HS pliant
- UL / CUR
- intended
Illustration similar
CONTACTS
Arrangement
Ratings (max.) switched power switched current switched voltage
Rated Loads UL/CUR
Contact material
Contact gap
Initial resistance
SPST-N.O. (1 Form A), SPDT (1 Form C)
(resistive load) 300 W or 2770 VA 10 A 30 VDC- or 277 VAC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. intended
Ag Sn O2 (silver tin oxide)
≥ 0.8 mm
< 100 mΩ (1 A / 24 V
- voltage drop method)
COIL
Nominal coil DC voltages 6, 12, 18, 24
Dropout voltage
Coil power nominal at pickup voltage max. cont. dissipation
≥ 10% of nominal coil voltage
540 m W 405 m W 1040 m W at 20°C (68°F)
Temperature Rise Max. temperature
85 K (153°F) at nominal...
