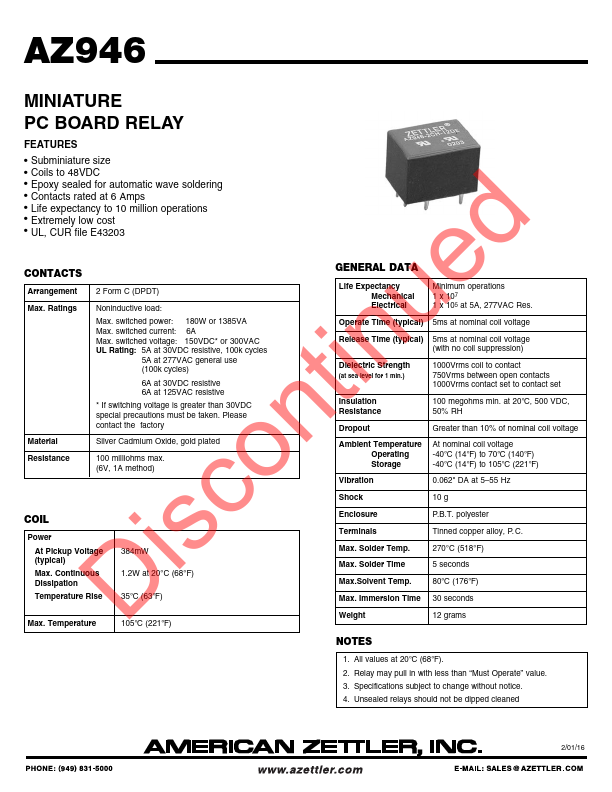

Datasheet Summary
MINIATURE PC BOARD RELAY
Features
- Subminiature size
- Coils to 48VDC
Discontinued
- Epoxysealedforautomaticwavesoldering
- Contacts rated at 6 Amps
- Life expectancy to 10 million operations
- Extremely low cost
- UL, CUR file E43203
CONTACTS
Arrangement Max. Ratings
Material Resistance
2 Form C (DPDT)
Noninductive load:
Max. switched power: 180W or 1385VA Max. switched current: 6A Max. switched voltage: 150VDC- or 300VAC UL Rating: 5A at 30VDC resistive, 100k cycles
5A at 277VAC general use (100k cycles)
6A at 30VDC resistive 6A at 125VAC resistive
- If switching voltage is greater than 30VDC special precautions must be taken. Please contact the factory
Silver Cadmium...
