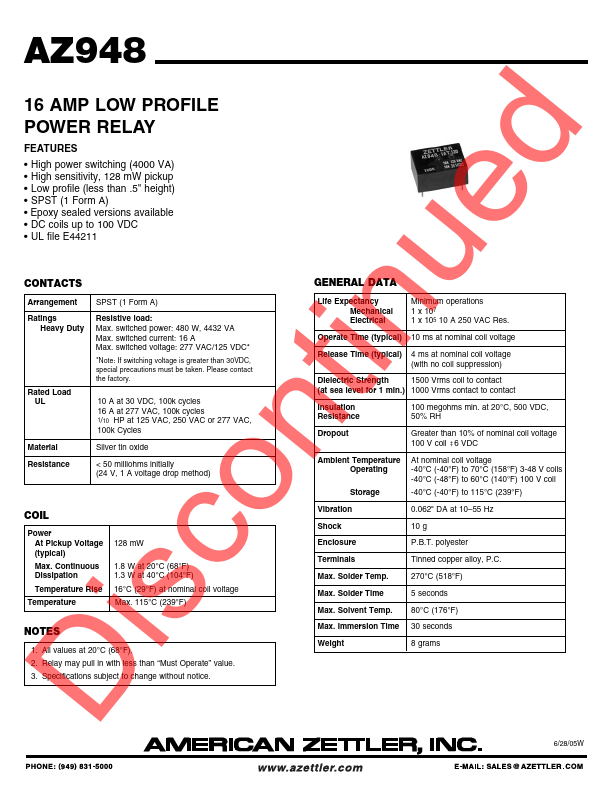

AZ948
FEATURES
- High power switching (4000 VA)
- High sensitivity, 128 m W pickup
- Low profile (less than .5" height)
- SPST (1 Form A)
- Epoxy sealed versions available
- DC coils up to 100 VDC
- UL file E44211
CONTACTS
Arrangement SPST (1 Form A)
Ratings Heavy Duty
Rated Load UL
Resistive load: Max. switched power: 480 W, 4432 VA Max. switched current: 16 A Max. switched voltage: 277 VAC/125 VDC-
- Note: If switching voltage is greater than 30VDC, special precautions must be taken. Please contact the factory.
10 A at 30 VDC, 100k cycles 16 A at 277 VAC, 100k cycles 1/10 HP at 125 VAC, 250 VAC or 277 VAC, 100k Cycles
Material
Silver tin oxide
Resistance
< 50 milliohms initially (24 V, 1 A voltage drop method)
COIL
Power At Pickup Voltage (typical)
Max. Continuous Dissipation
Temperature Rise
Temperature
128 m W
1.8 W at 20°C (68°F) 1.3 W at 40°C (104°F) 16°C (29°F) at nominal coil voltage Max. 115°C (239°F)
NOTES
1. All values at 20°C (68°F). 2. Relay may pull in with less than...
