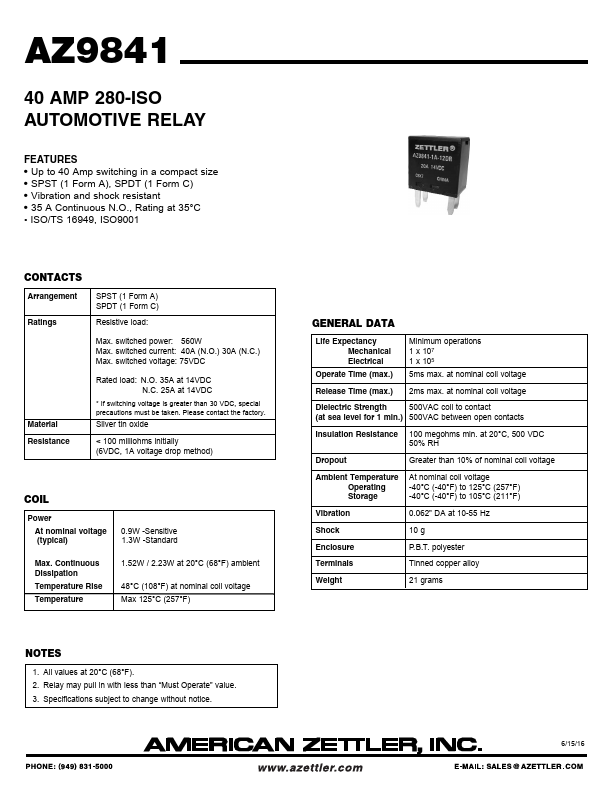

AZ9841
40 AMP 280-ISO AUTOMOTIVE RELAY
FEATURES • Up to 40 Amp switching in a compact size • SPST (1 Form A), SPDT (1 Form C) • Vibration and shock resistant • 35 A Continuous N.O., Rating at 35°C • ISO/TS 16949, ISO9001
CONTACTS
Arrangement Ratings
SPST (1 Form A) SPDT (1 Form C)
Resistive load:
Max. switched power: 560 W Max. switched current: N.O. 40A N.C. 30A Max. switched voltage: 75 VDC
Material Resistance
Rated load: N.O 35 A at 14 VDC N.C. 25 A at 14 VDC
* If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. Silver tin oxide
< 100 milliohms initially (6 VDC, 1 A voltage drop method)
COIL
Power At nominal voltage (typical)
Sensitive - 0.9W Standard - 1.3W
Max. Continuous Dissipation
Temperature Rise
Temperature
1.
AZ9841 Datasheet
