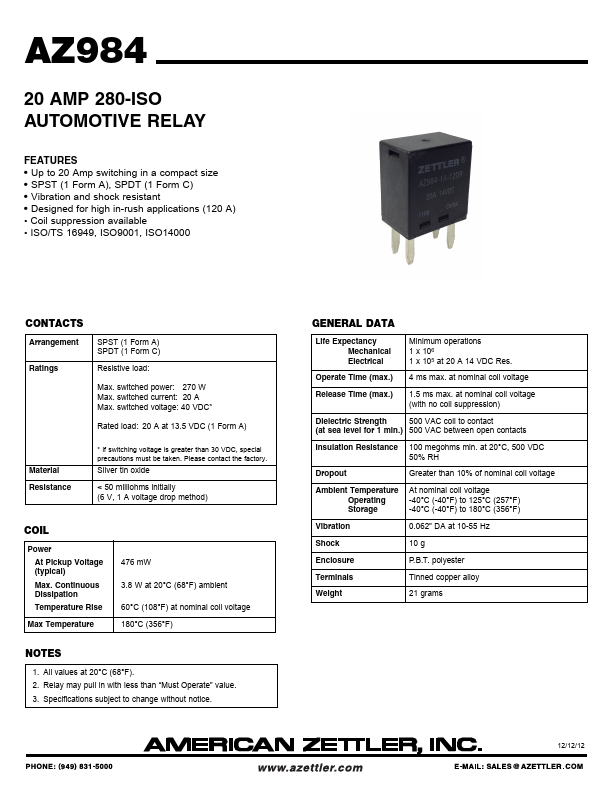

AZ984
Overview
- Up to 20 Amp switching in a compact size
- SPST (1 Form A), SPDT (1 Form C)
- Vibration and shock resistant
- Designed for high in-rush applications (120 A)
- Coil suppression available
- ISO/TS 16949, ISO9001, ISO14000 CONTACTS Arrangement Ratings SPST (1 Form A) SPDT (1 Form C) Resistive load: Max. switched power: 270 W Max. switched current: 20 A Max. switched voltage: 40 VDC* Rated load: 20 A at 13.5 VDC (1 Form A) Material Resistance
- If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. Silver tin oxide < 50 milliohms initially (6 V, 1 A voltage drop method) COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise Max Temperature 476 mW 3.8 W at 20°C (68°F) ambient 60°C (108°F) at nominal coil voltage 180°C (356°F) NOTES
- All values at 20°C (68°F).
- Relay may pull in with less than “Must Operate” value.
- Specifications subject to change without notice.
