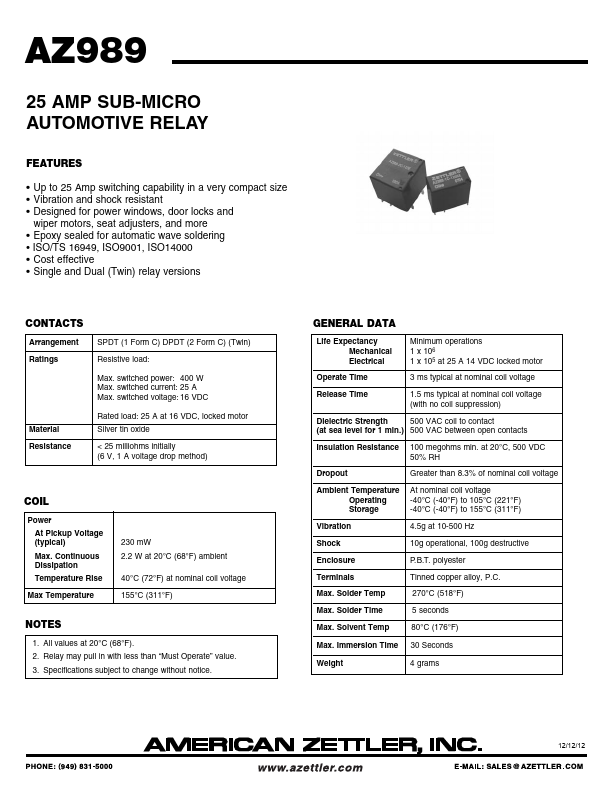

AZ989
Overview
- Up to 25 Amp switching capability in a very compact size
- Vibration and shock resistant
- Designed for power windows, door locks and wiper motors, seat adjusters, and more
- Epoxy sealed for automatic wave soldering
- ISO/TS 16949, ISO9001, ISO14000
- Cost effective
- Single and Dual (Twin) relay versions CONTACTS Arrangement Ratings SPDT (1 Form C) DPDT (2 Form C) (Twin) Resistive load: Max. switched power: 400 W Max. switched current: 25 A Max. switched voltage: 16 VDC Material Resistance Rated load: 25 A at 16 VDC, locked motor Silver tin oxide < 25 milliohms initially (6 V, 1 A voltage drop method) COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise Max Temperature 230 mW 2.2 W at 20°C (68°F) ambient 40°C (72°F) at nominal coil voltage 155°C (311°F) NOTES
- All values at 20°C (68°F).
- Relay may pull in with less than “Must Operate” value.
- Specifications subject to change without notice.
