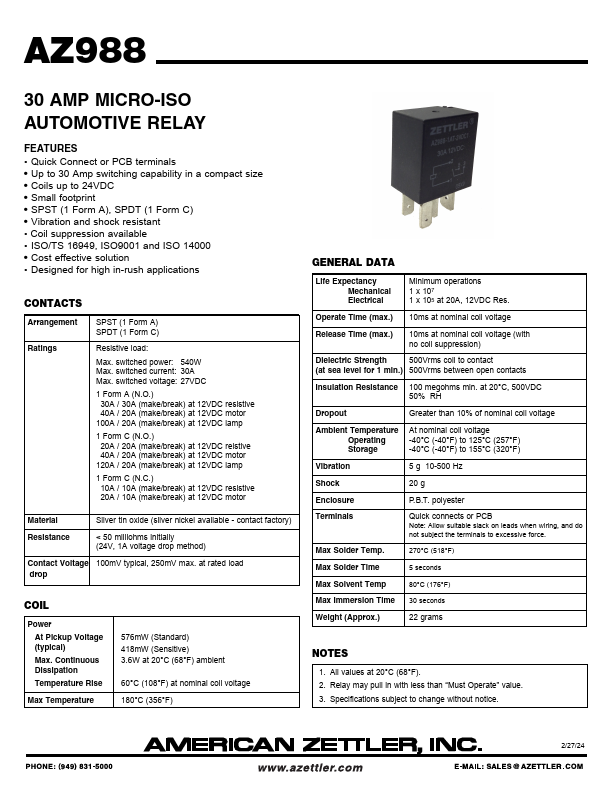

Datasheet Summary
30 AMP MICRO-ISO
AUTOMOTIVE RELAY
Features
- Quick Connect or PCB terminals
- Up to 30 Amp switching capability in a pact size
- Coils up to 24VDC
- Small footprint
- SPST (1 Form A), SPDT (1 Form C)
- Vibration and shock resistant
- Coil suppression available
- ISO/TS 16949, ISO9001 and ISO 14000
- Cost effective solution
- Designed for high in-rush applications
CONTACTS
Arrangement
Ratings
SPST (1 Form A) SPDT (1 Form C)
Resistive load:
Max. switched power: 540W Max. switched current: 30A Max. switched voltage: 27VDC
1 Form A (N.O.) 30A / 30A (make/break) at 12VDC resistive 40A / 20A (make/break) at 12VDC motor
100A / 20A (make/break) at 12VDC lamp
1 Form C (N.O.) 20A / 20A...
