Amphend MS3100F
wall mounting receptacle
| Part No. | MS3100F |
|---|---|
| Datasheet | MS3100F Download |
| Manufacturer | Amphend |
| Description | wall mounting receptacle |
| Buy | Stock & Price |

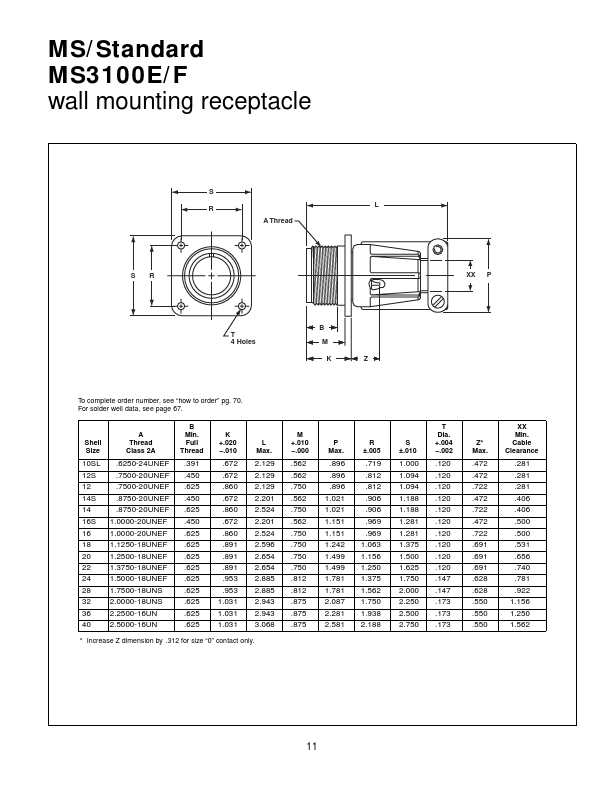

MS/Standard MS3100E/F wall mounting receptacle S R L A Thread SR XX P T 4 Holes B M K Z To complete order number, see “how to order” pg. 70. For solder well data, see page 67. Shell Size A Thread Class 2A 10SL 12S 12 14S 14 16S 16 .6250-24UNEF .7500-20UNEF .7500-20UNEF .8750-20UNEF .8750-20UNEF 1.0000-20UNEF 1.0000-20UNEF 18 1.1250-18UNEF 20 1.2500-18UNEF 22 1.3750-18UNEF 24 1.5000-18UNEF 28 1.7500-18UNS 32 2.0000-18UNS 36 2.2500-16UN 40 2.5000-16UN B Min. Full Thread .391 .450 .625 .450 .625 .450 .625 .625 .625 .625 .625 .625 .625 .625 .625 K +.020 –.010 .672 .672 .860 .672 .860 .672 .860 .891 .891 .891 .953 .953 1.031 1.031 1.031 L Max. 2.129 2.129 2.129 2.201 2.524 2.201 2.524 2.596 2.654 2.654 2.885 2.885 2.943 2.943 3.068 * Increase Z dimension by .312 for size “0” contact only. M +.010 –.000 .562 .562 .750 .562 .750 .562 .750 .750 .750 .750 .812 .812 .875 .875 .875 P Max. .896 .896 .896 1.021 1.021 1.151 1.151 1.242 1.499 1.499 1.781 1.781 2.087 2.281 2.581 R ±.005 .719 .812 .812...
