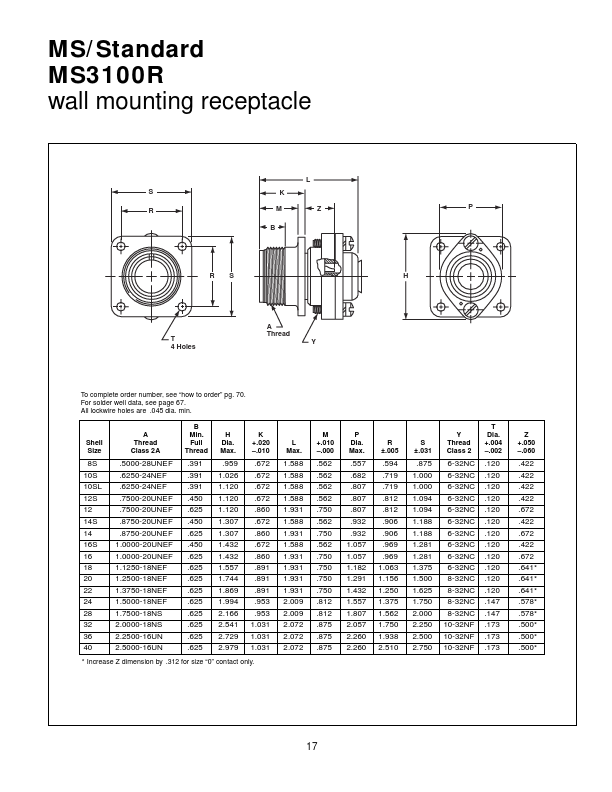

MS/Standard MS3100R wall mounting receptacle L S K R M Z B RS P H T 4 Holes A Thread Y To complete order number, see “how to order” pg. 70. For solder well data, see page 67. All lockwire holes are .045 dia. min. Shell Size A Thread Class 2A B Min. Full Thread H Dia. Max. K +.020 –.010 8S .5000-28UNEF .391 .959 .672 10S .6250-24NEF .391 1.026 .672 10SL .6250-24NEF .391 1.120 .672 12S .7500-20UNEF .450 1.120 .672 12 .7500-20UNEF .625 1.120 .860 14S .8750-20UNEF .450 1.307 .672 14 .8750-20UNEF .625 1.307 .860 16S 1.0000-20UNEF .450 1.432 .672 16 1.0000-20UNEF .625 1.432 .860 18 1.1250-18NEF .625 1.557 .891 20 1.2500-18NEF .625 1.744 .891 22 1.3750-18NEF .625 1.869 .891 24 1.5000-18NEF .625 1.994 .953 28 1.7500-18NS .625 2.166 .953 32 2.0000-18NS .625 2.541 1.031 36 2.2500-16UN .625 2.729 1.031 40 2.5000-16UN .625 2.979 1.031 * Increase Z dimension by .312 for size “0” contact only. L Max. 1.588 1.588 1.588 1.588 1.931 1.588 1.931 1.588 1.931 1.931 1.931 1.931 2.009 2.009 2.072 2.072 2.072 M +.010 –.000 .562 .562 .562 .562 .750 .562 .750 .562 .750 .750 .750 .750 .812 .812 .875 .875 .875 P Dia.
