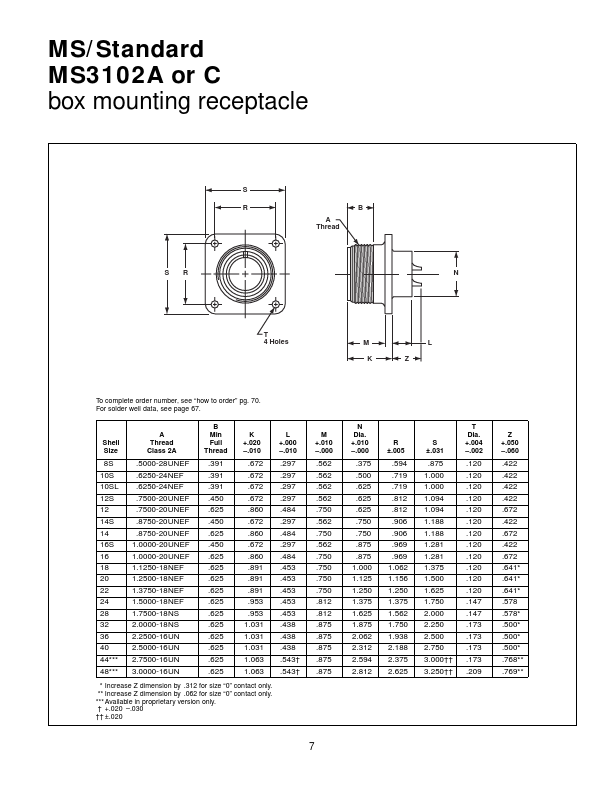

MS/Standard MS3102A or C box mounting receptacle S R B A Thread SR N T 4 Holes M L K Z To complete order number, see “how to order” pg. 70. For solder well data, see page 67. Shell Size 8S 10S 10SL 12S 12 14S 14 16S 16 18 20 22 24 28 32 36 40 44*** 48*** A Thread Class 2A .5000-28UNEF .6250-24NEF .6250-24NEF .7500-20UNEF .7500-20UNEF .8750-20UNEF .8750-20UNEF 1.0000-20UNEF 1.0000-20UNEF 1.1250-18NEF 1.2500-18NEF 1.3750-18NEF 1.5000-18NEF 1.7500-18NS 2.0000-18NS 2.2500-16UN 2.5000-16UN 2.7500-16UN 3.0000-16UN B Min Full Thread .391 .391 .391 .450 .625 .450 .625 .450 .625 .625 .625 .625 .625 .625 .625 .625 .625 .625 .625 K +.020 –.010 .672 .672 .672 .672 .860 .672 .860 .672 .860 .891 .891 .891 .953 .953 1.031 1.031 1.031 1.063 1.063 L +.000 –.010 .297 .297 .297 .297 .484 .297 .484 .297 .484 .453 .453 .453 .453 .453 .438 .438 .438 .543† .543† * Increase Z dimension by .312 for size “0” contact only. ** Increase Z dimension by .062 for size “0” contact only. *** Available in proprietary version only. † +.020 –.030 †† ±.020 M +.010 –.000 .562 .562 .562 .562 .750 .562 .750 .562 .750 .750 .750 .750 .812 .812 .875 .875 .875 .875 .875 N Dia.
