Amphend MS3102R
box mounting receptacle
| Part No. | MS3102R |
|---|---|
| Datasheet | MS3102R Download |
| Manufacturer | Amphend |
| Description | box mounting receptacle |
| Buy | Stock & Price |

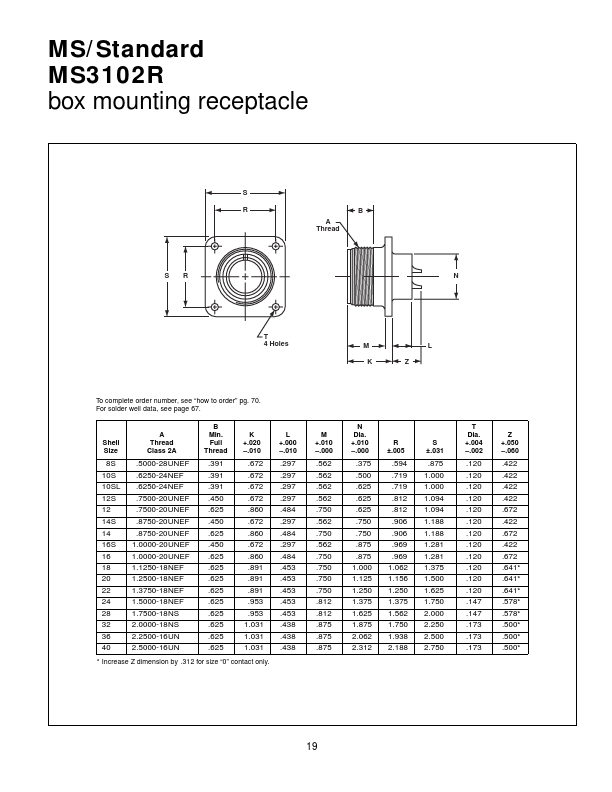

MS/Standard MS3102R box mounting receptacle S R B A Thread SR N T 4 Holes M L K Z To complete order number, see “how to order” pg. 70. For solder well data, see page 67. Shell Size A Thread Class 2A B Min. Full Thread K +.020 –.010 8S 10S 10SL 12S 12 14S 14 16S 16 18 20 22 24 28 32 36 40 .5000-28UNEF .6250-24NEF .6250-24NEF .7500-20UNEF .7500-20UNEF .8750-20UNEF .8750-20UNEF 1.0000-20UNEF 1.0000-20UNEF 1.1250-18NEF 1.2500-18NEF 1.3750-18NEF 1.5000-18NEF 1.7500-18NS 2.0000-18NS 2.2500-16UN 2.5000-16UN .391 .391 .391 .450 .625 .450 .625 .450 .625 .625 .625 .625 .625 .625 .625 .625 .625 .672 .672 .672 .672 .860 .672 .860 .672 .860 .891 .891 .891 .953 .953 1.031 1.031 1.031 * Increase Z dimension by .312 for size “0” contact only. L +.000 –.010 .297 .297 .297 .297 .484 .297 .484 .297 .484 .453 .453 .453 .453 .453 .438 .438 .438 M +.010 –.000 .562 .562 .562 .562 .750 .562 .750 .562 .750 .750 .750 .750 .812 .812 .875 .875 .875 N Dia. +.010 –.000 .375 .500 .625 .625 .625 .750 .750 .875 .875 1...
