AD8276 - (AD8276 / AD8277) Low Cost Unity-Gain Difference Amplifiers

Datasheet Summary

Description

The AD8276/AD8277 are general-purpose, unity-gain difference amplifiers intended for precision signal conditioning in power critical applications that require both high performance and low power.

Features

  • Wide input range beyond supplies Rugged input overvoltage protection Low supply current: 200 μA maximum per channel Low power dissipation: 0.5 mW at VS = 2.5 V Bandwidth: 550 kHz CMRR: 86 dB minimum, dc to 10 kHz Low offset voltage drift: ±2 μV/°C maximum (B Grade) Low gain drift: 1 ppm/°C maximum (B Grade) Enhanced slew rate: 1.1 V/μs Wide power supply range: Single supply: 2 V to 36 V Dual supplies: ±2 V to ±18 V.

📥 Download Datasheet

Datasheet preview – AD8276

Datasheet Details

Part number AD8276
Manufacturer Analog Devices
File Size 496.48 KB
Description (AD8276 / AD8277) Low Cost Unity-Gain Difference Amplifiers
Datasheet download datasheet AD8276 Datasheet

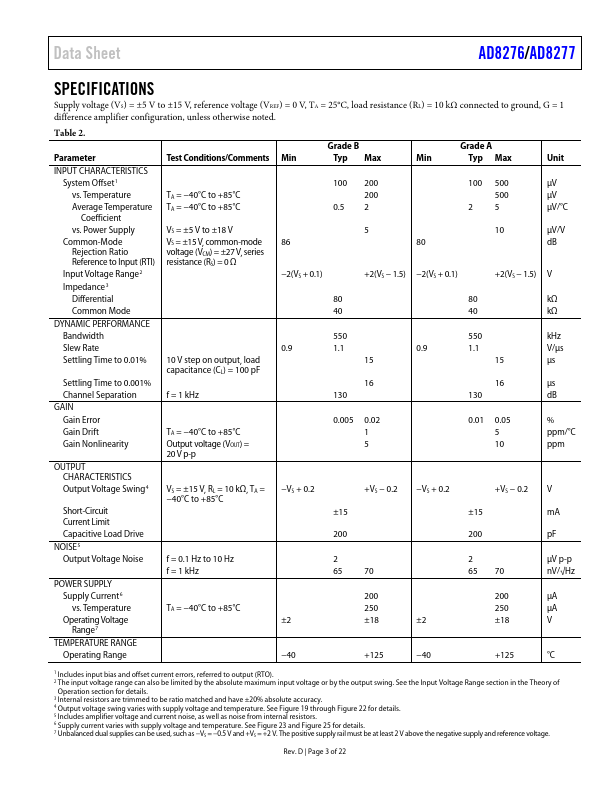

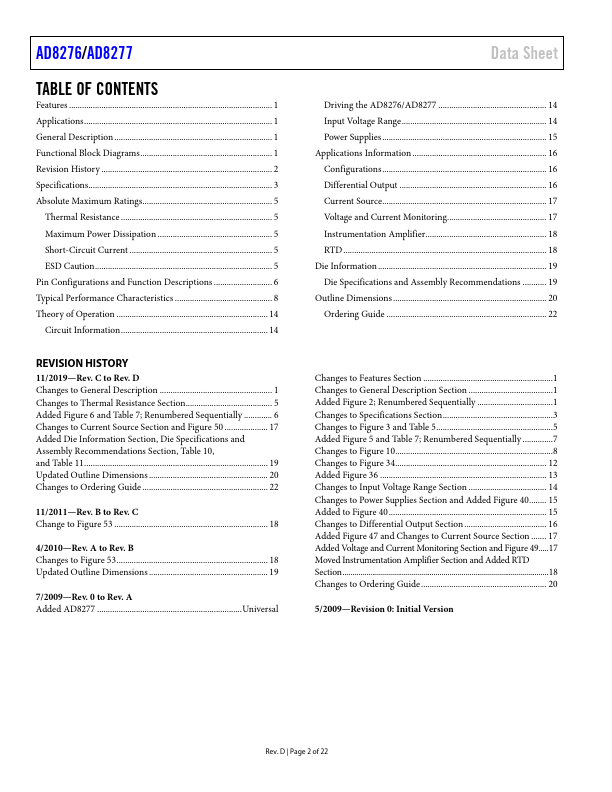

Additional preview pages of the AD8276 datasheet.

📁 Similar Datasheet

  • AD82010 - Mono Filter-less Digital Audio Amplifier (ESMT)
  • AD82050 - Mono Digital Audio Amplifier (ESMT)
  • AD82088 - Mono Digital Audio Amplifier (ESMT)
  • AD82088D - 2x25W Stereo / 1x50W Mono Digital Audio Amplifier (ESMT)
  • AD82120 - Mono Digital Audio Amplifier (ESMT)
  • AD82128 - Digital Audio Amplifier (ESMT)
  • AD82129 - Mono Digital Audio Amplifier (ESMT)
  • AD82178 - Mono Digital Audio Amplifier (ESMT)
  • AD82550A - Stereo Digital Audio Amplifier (Elite Semiconductor Memory Technology)
  • AD82551A - Stereo Digital Audio Amplifier (Elite Semiconductor Memory Technology)
Other Datasheets by Analog Devices
  • AD827 - Low Power Dual Op Amp
  • AD8270 - Precision Dual-Channel Difference Amplifier
  • AD8271 - Programmable Gain Precision Difference Amplifier
  • AD8273 - High Precision Difference Amplifier
  • AD8274 - Precision Difference Amplifier
  • AD8275 - 16-Bit ADC Driver
  • AD8277 - (AD8276 / AD8277) Low Cost Unity-Gain Difference Amplifiers
  • AD8278 - Low Cost Difference Amplifiers

Full PDF Text Transcription

Click to expand full text

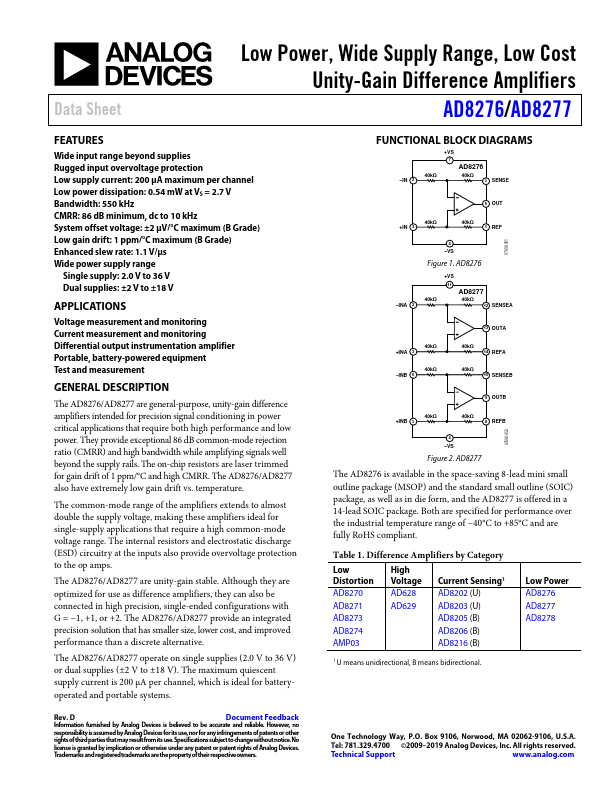

Data Sheet Low Power, Wide Supply Range, Low Cost Unity-Gain Difference Amplifiers AD8276/AD8277 FEATURES Wide input range beyond supplies Rugged input overvoltage protection Low supply current: 200 μA maximum per channel Low power dissipation: 0.5 mW at VS = 2.5 V Bandwidth: 550 kHz CMRR: 86 dB minimum, dc to 10 kHz Low offset voltage drift: ±2 μV/°C maximum (B Grade) Low gain drift: 1 ppm/°C maximum (B Grade) Enhanced slew rate: 1.
