Download the AD8277 datasheet PDF.
This datasheet also covers the AD8276 variant, as both devices belong to the same (ad8276 / ad8277) low cost unity-gain difference amplifiers family and are provided as variant models within a single manufacturer datasheet.
General Description
The AD8276/AD8277 are general-purpose, unity-gain difference amplifiers intended for precision signal conditioning in power critical applications that require both high performance and low power.
Key Features
Wide input range beyond supplies Rugged input overvoltage protection Low supply current: 200 μA maximum per channel Low power dissipation: 0.5 mW at VS = 2.5 V Bandwidth: 550 kHz CMRR: 86 dB minimum, dc to 10 kHz Low offset voltage drift: ±2 μV/°C maximum (B Grade) Low gain drift: 1 ppm/°C maximum (B Grade) Enhanced slew rate: 1.1 V/μs Wide power supply range:
Single supply: 2 V to 36 V Dual supplies: ±2 V to ±18 V.
Full PDF Text Transcription for AD8277 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
AD8277. For precise diagrams, and layout, please refer to the original PDF.

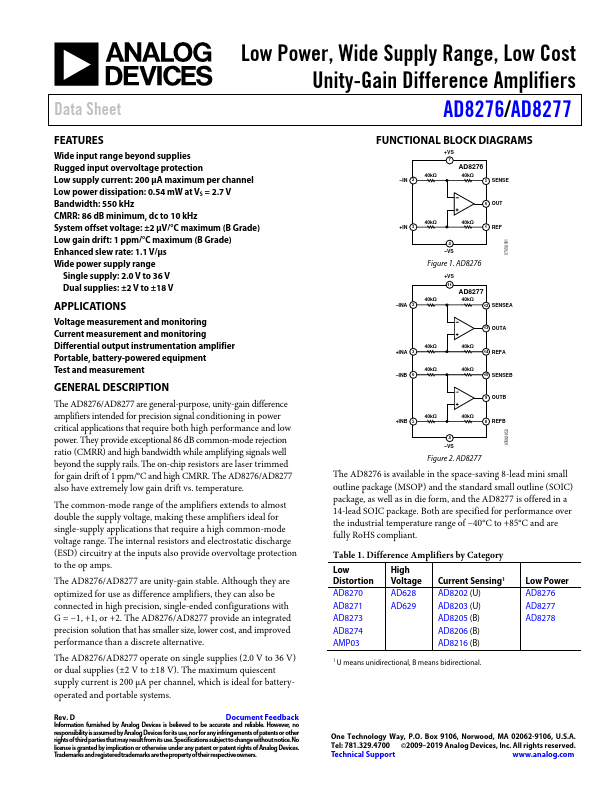

Data Sheet Low Power, Wide Supply Range, Low Cost Unity-Gain Difference Amplifiers AD8276/AD8277 FEATURES Wide input range beyond supplies Rugged input overvoltage protec...
View more extracted text
TURES Wide input range beyond supplies Rugged input overvoltage protection Low supply current: 200 μA maximum per channel Low power dissipation: 0.5 mW at VS = 2.5 V Bandwidth: 550 kHz CMRR: 86 dB minimum, dc to 10 kHz Low offset voltage drift: ±2 μV/°C maximum (B Grade) Low gain drift: 1 ppm/°C maximum (B Grade) Enhanced slew rate: 1.
