AD8606 - Input/Output Operational Amplifiers

This page provides the datasheet information for the AD8606, a member of the AD8605 Input/Output Operational Amplifiers family.

Description

The AD8605, AD8606, and AD86081 are single, dual, and quad rail-to-rail input and output, single-supply amplifiers.

They feature very low offset voltage, low input voltage and current noise, and wide signal bandwidth.

They use the Analog Devices, Inc.

Features

  • Low offset voltage: 65 μV maximum Low input bias currents: 1 pA maximum Low noise: 8 nV/√Hz Wide bandwidth: 10 MHz High open-loop gain: 1000 V/mV Unity gain stable Single-supply operation: 2.7 V to 5.5 V 5-ball WLCSP for single (AD8605) and 8-ball WLCSP for dual (AD8606).

📥 Download Datasheet

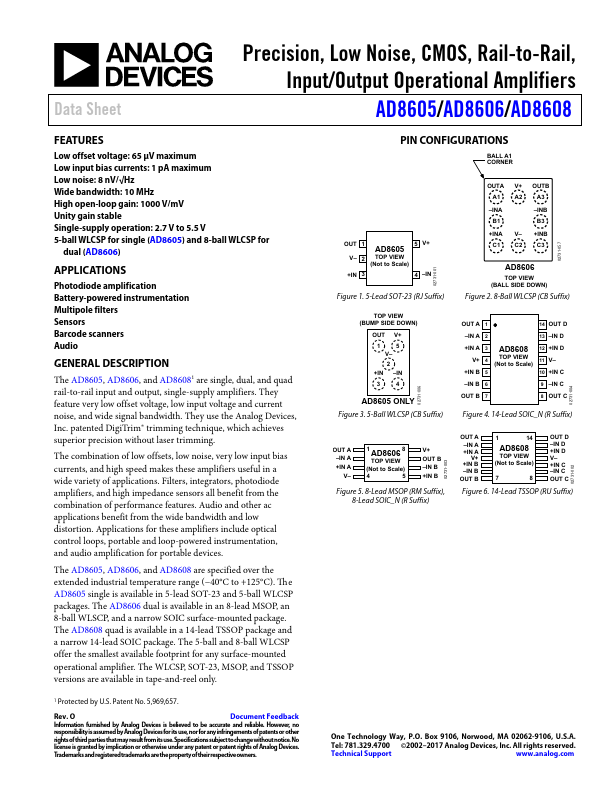

Datasheet preview – AD8606

Datasheet Details

Part number AD8606
Manufacturer Analog Devices
File Size 801.29 KB
Description Input/Output Operational Amplifiers
Datasheet download datasheet AD8606 Datasheet
Additional preview pages of the AD8606 datasheet.

📁 Similar Datasheet

  • AD82010 - Mono Filter-less Digital Audio Amplifier (ESMT)
  • AD82050 - Mono Digital Audio Amplifier (ESMT)
  • AD82088 - Mono Digital Audio Amplifier (ESMT)
  • AD82088D - 2x25W Stereo / 1x50W Mono Digital Audio Amplifier (ESMT)
  • AD82120 - Mono Digital Audio Amplifier (ESMT)
  • AD82128 - Digital Audio Amplifier (ESMT)
  • AD82129 - Mono Digital Audio Amplifier (ESMT)
  • AD82178 - Mono Digital Audio Amplifier (ESMT)
  • AD82550A - Stereo Digital Audio Amplifier (Elite Semiconductor Memory Technology)
  • AD82551A - Stereo Digital Audio Amplifier (Elite Semiconductor Memory Technology)
Other Datasheets by Analog Devices
  • AD8600 - 16-Channel/ 8-Bit Multiplying DAC
  • AD8601 - Input/Output Wideband Operational Amplifiers
  • AD8602 - Input/Output Wideband Operational Amplifiers
  • AD8603 - Rail-to-Rail Input/Output Operational Amplifiers
  • AD8604 - Input/Output Wideband Operational Amplifiers
  • AD8605 - Input/Output Operational Amplifiers
  • AD8607 - Rail-to-Rail Input/Output Operational Amplifiers
  • AD8608 - Input/Output Operational Amplifiers

Full PDF Text Transcription

Click to expand full text
Data Sheet Precision, Low Noise, CMOS, Rail-to-Rail, Input/Output Operational Amplifiers AD8605/AD8606/AD8608 FEATURES Low offset voltage: 65 μV maximum Low input bias currents: 1 pA maximum Low noise: 8 nV/√Hz Wide bandwidth: 10 MHz High open-loop gain: 1000 V/mV Unity gain stable Single-supply operation: 2.7 V to 5.5 V 5-ball WLCSP for single (AD8605) and 8-ball WLCSP for dual (AD8606) APPLICATIONS Photodiode amplification Battery-powered instrumentation Multipole filters Sensors Barcode scanners Audio GENERAL DESCRIPTION The AD8605, AD8606, and AD86081 are single, dual, and quad rail-to-rail input and output, single-supply amplifiers. They feature very low offset voltage, low input voltage and current noise, and wide signal bandwidth. They use the Analog Devices, Inc.
