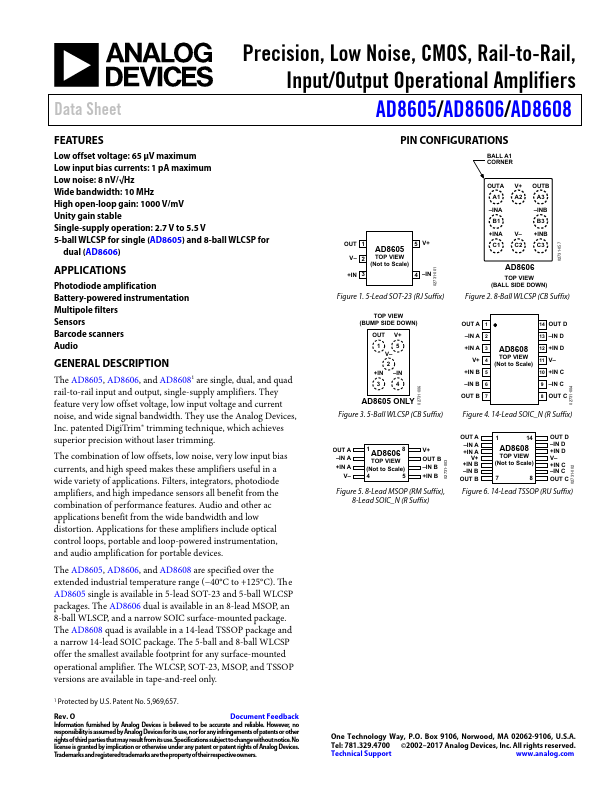

AD8608
FEATURES
Low offset voltage: 65 μV maximum Low input bias currents: 1 p A maximum Low noise: 8 n V/√Hz Wide bandwidth: 10 MHz High open-loop gain: 1000 V/m V Unity gain stable Single-supply operation: 2.7 V to 5.5 V 5-ball WLCSP for single (AD8605) and 8-ball WLCSP for dual (AD8606)
APPLICATIONS
Photodiode amplification Battery-powered instrumentation Multipole filters Sensors Barcode scanners Audio
GENERAL DESCRIPTION
The AD8605, AD8606, and AD86081 are single, dual, and quad rail-to-rail input and output, single-supply amplifiers. They feature very low offset voltage, low input voltage and current noise, and wide signal bandwidth. They use the Analog Devices, Inc. patented Digi Trim® trimming technique, which achieves superior precision without laser trimming.
The bination of low offsets, low noise, very low input bias currents, and high speed makes these amplifiers useful in a wide variety of applications. Filters, integrators, photodiode amplifiers, and high impedance sensors all...
