ADA4817-2 - FastFET Op Amps

This page provides the datasheet information for the ADA4817-2, a member of the ADA4817-1 FastFET Op Amps family.

Description

The ADA4817-1 (single) and ADA4817-2 (dual) FastFET™ amplifiers are unity-gain stable, ultrahigh speed, voltage feedback amplifiers with FET inputs.

Features

  • High speed.
  • 3 dB bandwidth (G = 1, RL = 100 Ω): 1050 MHz.
  • Slew rate: 870 V/µs.
  • 0.1% settling time: 9 ns.
  • Input bias current: 2 pA typical.
  • Input capacitance.
  • Common-mode capacitance: 1.3 pF typical.
  • Differential mode capacitance: 0.1 pF typical.
  • Low input noise.
  • Voltage noise: 4 nV/√Hz at 100 kHz.
  • Current noise: 2.5 fA/√Hz at 100 kHz.
  • Low distortion:.
  • 90 dBc at 10 MHz (G = 1, RL = 1 kΩ).
  • Linear output current: 40.

📥 Download Datasheet

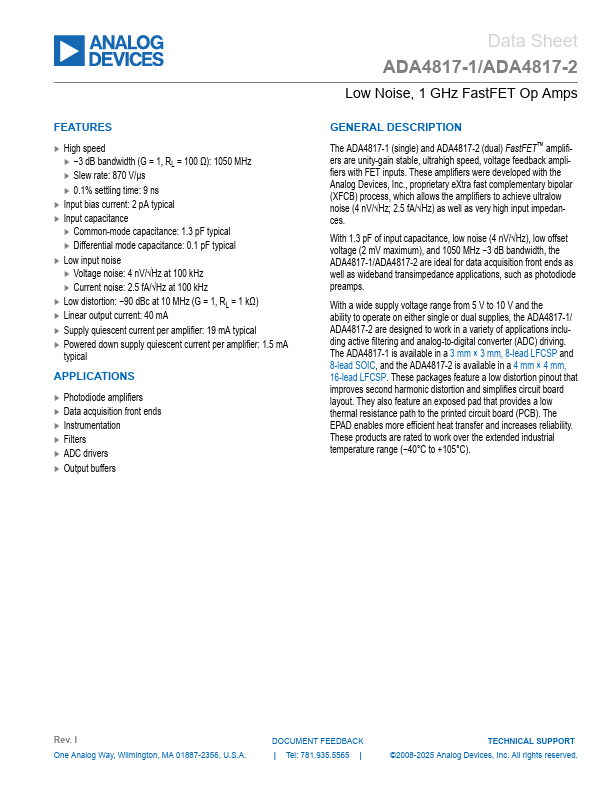

Datasheet preview – ADA4817-2

Datasheet Details

Part number ADA4817-2
Manufacturer Analog Devices
File Size 1.23 MB
Description FastFET Op Amps
Datasheet download datasheet ADA4817-2 Datasheet

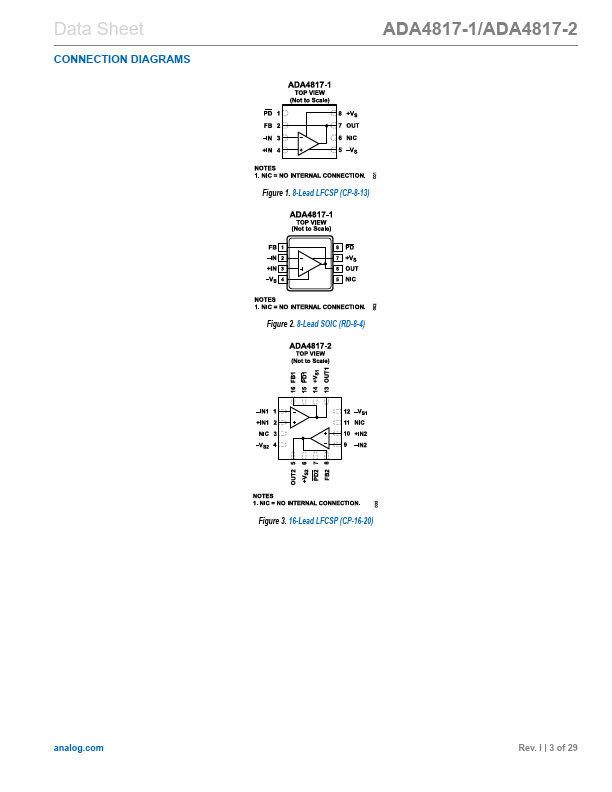

Additional preview pages of the ADA4817-2 datasheet.
