ADIS16500 - Miniature MEMS IMU

Description

The ADIS16500 is a precision, miniature microelectomechanical system (MEMS) inertial measurement unit (IMU) that includes a triaxial gyroscope and a triaxial accelerometer.

Each inertial sensor in the ADIS16500 combines with signal conditioning that optimizes dynamic performance.

Features

Triaxial, digital gyroscope ±2000°/sec dynamic range 8.1°/hr in-run bias stability 0.29°/√hr angular random walk, x-axis and y-axis, 1 σ ±0.25° axis to axis misalignment error Triaxial, digital accelerometer, ±392 m/sec² dynamic range 125 µm/sec² in-run bias stability Triaxial, delta angle and delta velocity outputs Factory calibrated sensitivity, bias, and axial alignment Calibration temperature range:.
10°C to +75°C SPI compatible data communications Programmable operation and control.

Analog Devices

📥 Download Datasheet

Datasheet Details

Part number	ADIS16500
Manufacturer	Analog Devices
File Size	1.10 MB
Description	Miniature MEMS IMU
Datasheet	ADIS16500 Datasheet

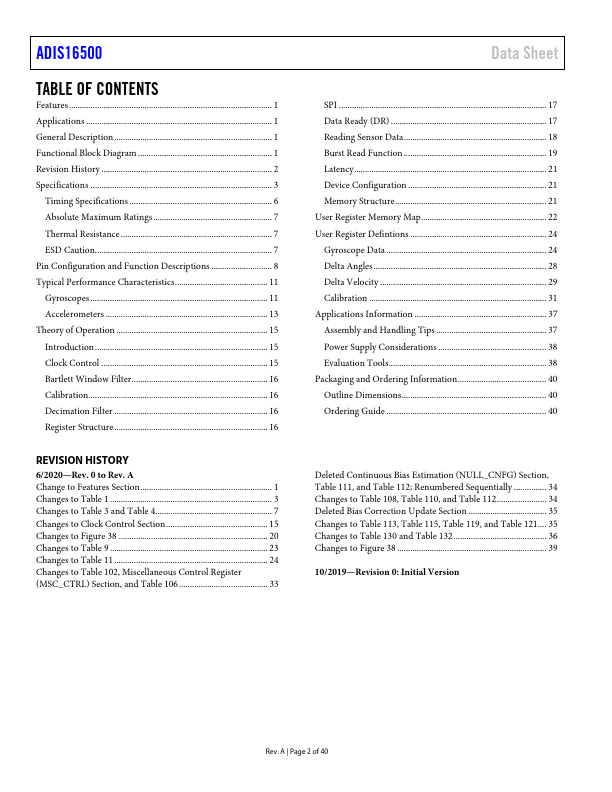

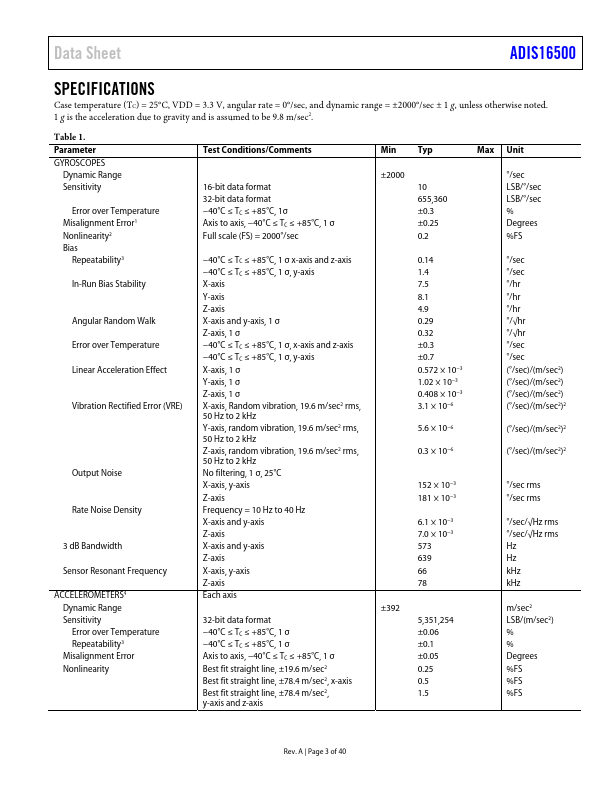

Additional preview pages of the ADIS16500 datasheet.

📁 Similar Datasheet

Other Datasheets by Analog Devices

ADIS16505 - Miniature MEMS IMU
ADIS16507 - Miniature MEMS IMU
ADIS16545 - Six Degrees of Freedom Inertial Sensors
ADIS16547 - Six Degrees of Freedom Inertial Sensors
ADIS16000 - Digital MEMS Vibration Sensor
ADIS16003 - Dual-Axis +-1.7 g Accelerometer
ADIS16006 - Dual-Axis +-5 g Accelerometer
ADIS16060 - Wide Bandwidth Yaw Rate Gyroscope

Full PDF Text Transcription

Click to expand full text

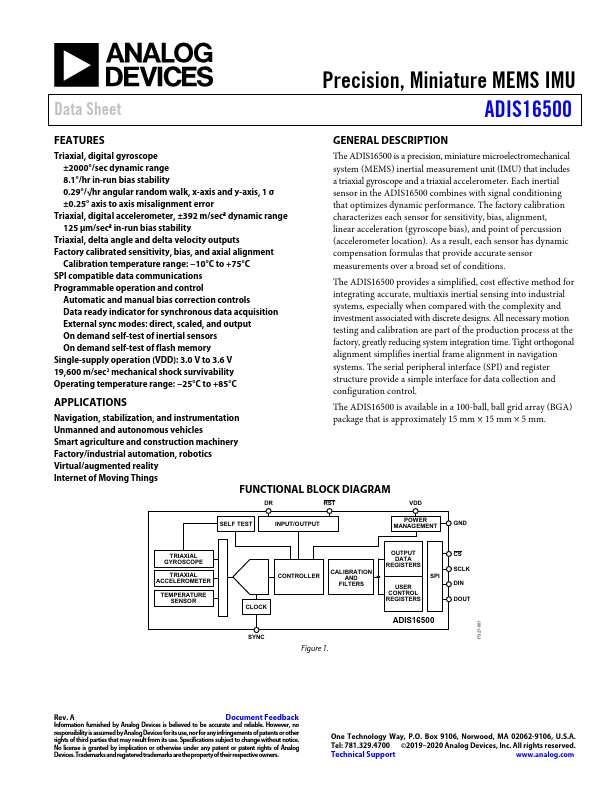

Data Sheet Precision, Miniature MEMS IMU ADIS16500 FEATURES Triaxial, digital gyroscope ±2000°/sec dynamic range 8.1°/hr in-run bias stability 0.29°/√hr angular random walk, x-axis and y-axis, 1 σ ±0.

Published: Apr 25, 2020 |
