Analog Devices ADP160
CMOS Linear Regulators
| Part No. | ADP160 |
|---|---|
| Datasheet | ADP160 Download |
| Manufacturer |  Analog Devices |
| Description | CMOS Linear Regulators |
| Buy | Stock & Price |
FEATURES

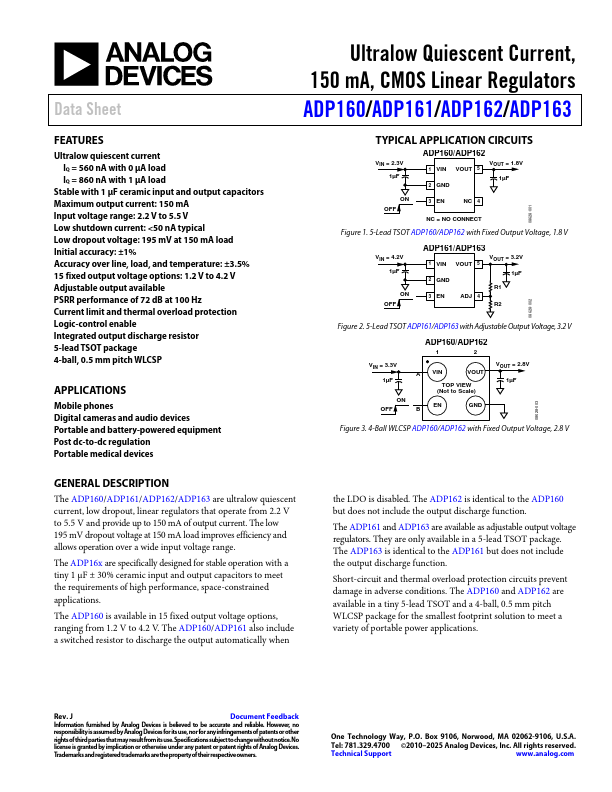

Ultralow quiescent current IQ = 560 nA with 0 µA load IQ = 860 nA with 1 µA load Stable with 1 µF ceramic input and output capacitors Maximum output current: 150 mA Input voltage range: 2.2 V to 5.5 V Low shutdown current: <50 nA typical Low dropout voltage: 195 mV at 150 mA load Initial accuracy: ±1% Accuracy over line, load, and temperature: ±3.5% 15 fixed output voltage options: 1.2 V to 4.2 V Adjustable output available PSRR performance of 72 dB at 100 Hz Current limit and thermal overload protection Logic-control enable Integrated output discharge resistor 5-lead TSOT package 4-ball, 0.5 mm pitch WLCSPAPPLICATIONS
Mobile phones Digital cameras and audio devices Portable and battery-powered equipment Post dc-to-dc regulation Portable medical devices Ultralow Quiescent Current, 150 mA, CMOS Linear Regulators ADP160/ADP161/ADP162/ADP163 TYPICAL APPLICATION CIRCUITS ADP160/ADP162 VIN = 2.3V 1µF 1 VIN VOUT 5 2 GND VOUT = 1.8V 1µF 08628-001 ON OFF 3 EN NC 4 NC = NO CONNECT Figure 1.
