ADR4533
ADR4533 is High Accuracy Voltage References manufactured by Analog Devices.
- Part of the ADR4520 comparator family.
- Part of the ADR4520 comparator family.

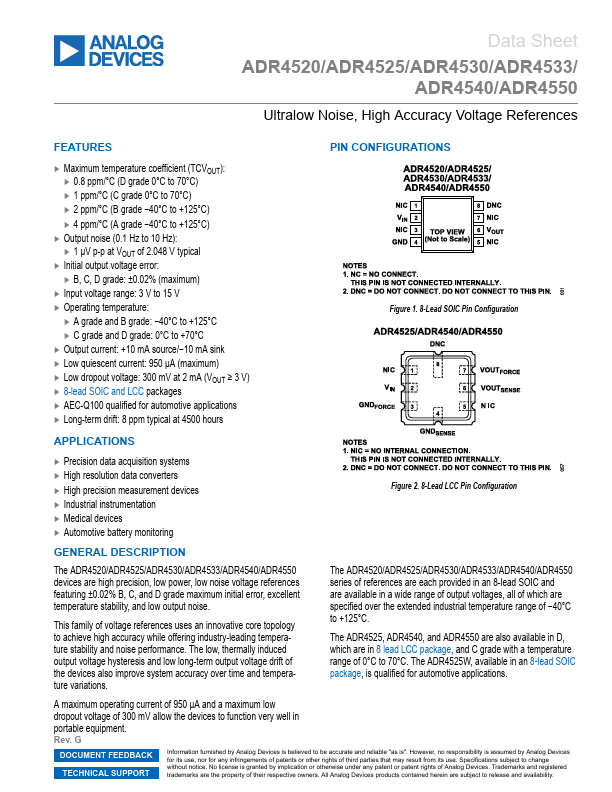

Data Sheet ADR4520/ADR4525/ADR4530/ADR4533/
ADR4540/ADR4550
Ultralow Noise, High Accuracy Voltage References
Features
PIN CONFIGURATIONS
- Maximum temperature coefficient (TCVOUT):
- 0.8 ppm/°C (D grade 0°C to 70°C)
- 1 ppm/°C (C grade 0°C to 70°C)
- 2 ppm/°C (B grade
- 40°C to +125°C)
- 4 ppm/°C (A grade
- 40°C to +125°C)
- Output noise (0.1 Hz to 10 Hz):
- 1 μV p-p at VOUT of 2.048 V typical
- Initial output voltage error:
- B, C, D grade: ±0.02% (maximum)
- Input voltage range: 3 V to 15 V
- Operating temperature:
- A grade and B grade:
- 40°C to +125°C
- C grade and D grade: 0°C to +70°C
- Output current: +10 mA source/- 10 mA sink
- Low quiescent current: 950 μA (maximum)
- Low dropout...
