ADR4530 - High Accuracy Voltage References

This page provides the datasheet information for the ADR4530, a member of the ADR4520 High Accuracy Voltage References family.

Datasheet Summary

Description

The ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ADR4550 devices are high precision, low power, low noise voltage references featuring ±0.02% B, C, and D grade maximum initial error, excellent temperature stability, and low output noise.

Features

PIN.

Analog Devices

📥 Download Datasheet

Datasheet Details

Part number	ADR4530
Manufacturer	Analog Devices
File Size	7.26 MB
Description	High Accuracy Voltage References
Datasheet	ADR4530 Datasheet
Additional preview pages of the ADR4530 datasheet.

📁 Similar Datasheet

ADR30L - DISH AVALANCHE AUTOMOTIVE RECTIFIER (MIC)
ADR30M - DISH AVALANCHE AUTOMOTIVE RECTIFIER (MIC)
ADR30Z - DISH AVALANCHE AUTOMOTIVE RECTIFIER (MIC)
ADR3410 - High Linearity 1 Watt Amplifier (ANADIGICS)
ADRS30L - DISH AVALANCHE AUTOMOTIVE RECTIFIER (MIC)
ADRS30M - DISH AVALANCHE AUTOMOTIVE RECTIFIER (MIC)
ADRS30Z - DISH AVALANCHE AUTOMOTIVE RECTIFIER (MIC)

Other Datasheets by Analog Devices

ADR4533 - High Accuracy Voltage References
ADR4520 - High Accuracy Voltage References
ADR4525 - High Accuracy Voltage References
ADR4540 - High Accuracy Voltage References
ADR4550 - High Accuracy Voltage References
ADR420 - Voltage References
ADR421 - Voltage References
ADR423 - Voltage References

Full PDF Text Transcription

Click to expand full text

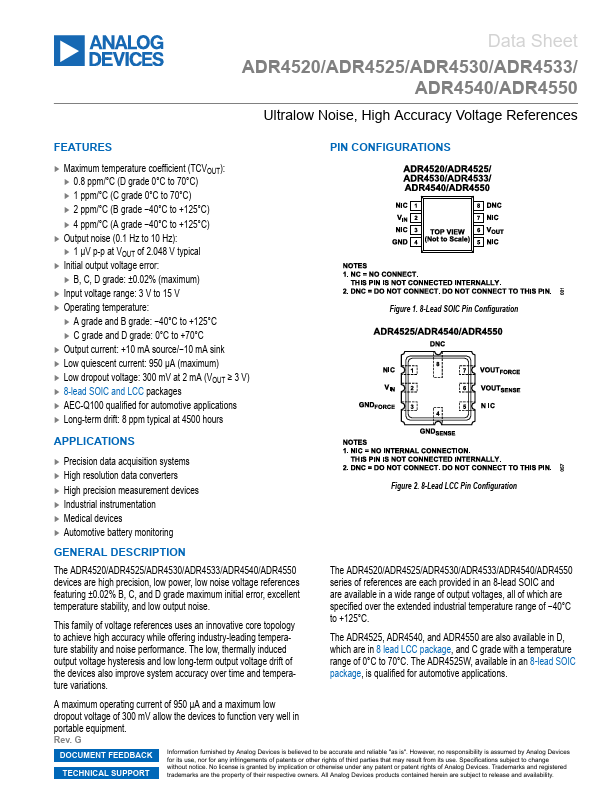

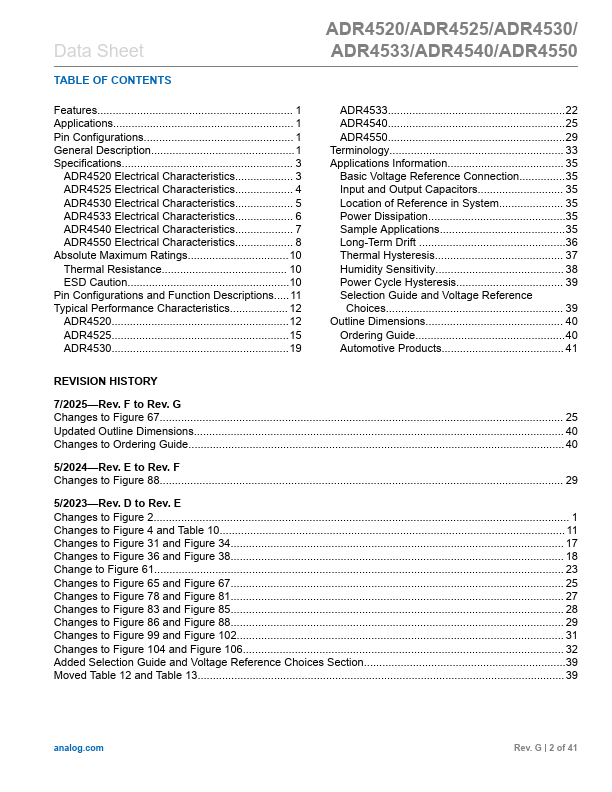

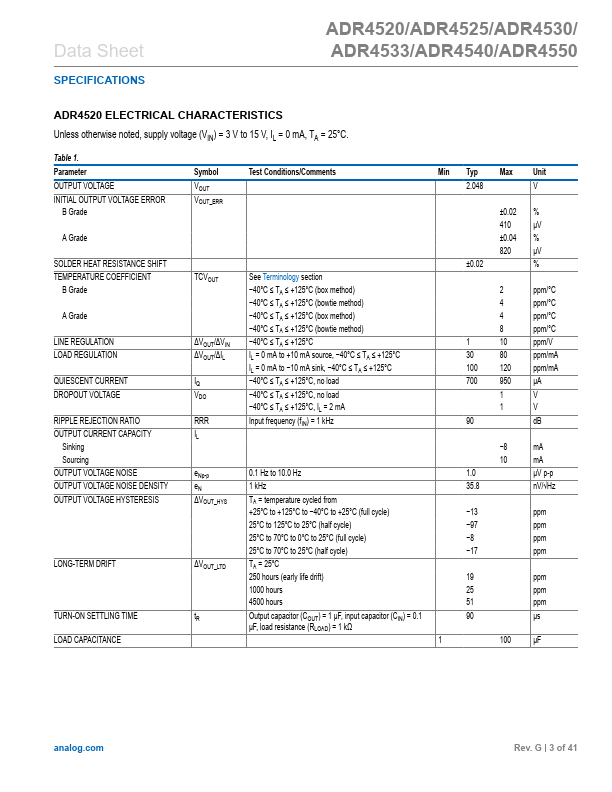

Data Sheet ADR4520/ADR4525/ADR4530/ADR4533/ ADR4540/ADR4550 Ultralow Noise, High Accuracy Voltage References FEATURES PIN CONFIGURATIONS ► Maximum temperature coefficient (TCVOUT): ► 0.8 ppm/°C (D grade 0°C to 70°C) ► 1 ppm/°C (C grade 0°C to 70°C) ► 2 ppm/°C (B grade −40°C to +125°C) ► 4 ppm/°C (A grade −40°C to +125°C) ► Output noise (0.1 Hz to 10 Hz): ► 1 μV p-p at VOUT of 2.048 V typical ► Initial output voltage error: ► B, C, D grade: ±0.
