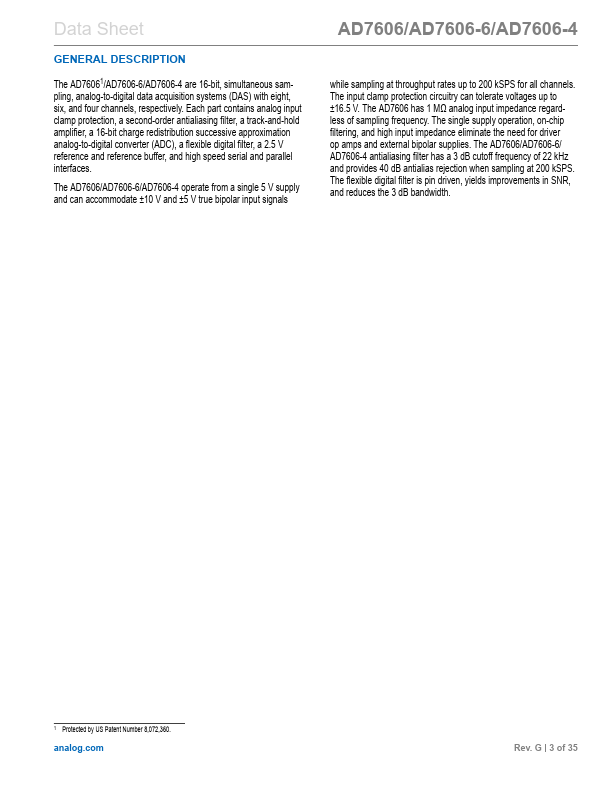

AD7606-6 Description

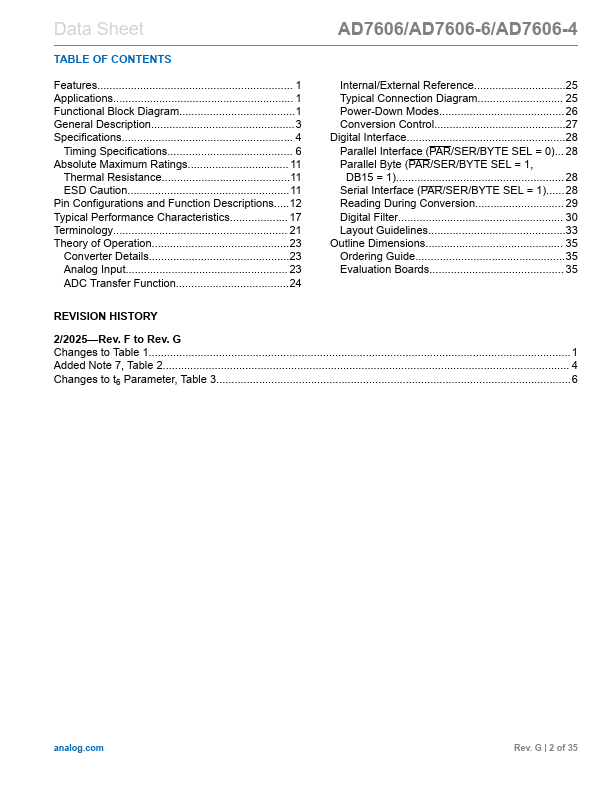

...............................................3 Specifications........................................................ 4 Timing Specifications......................................... 6 Ratings.................................
AD7606-6 Key Features
- 8/6/4 simultaneously sampled inputs
- True bipolar analog input ranges: ±10 V, ±5 V
- Pin to pin patible with the state-of-the-art AD7606B
- Single 5 V analog supply and 2.3 V to 5 V VDRIVE
- Fully integrated data acquisition solution
- Analog input clamp protection
- Input buffer with 1 MΩ analog input impedance
- Second-order antialiasing analog filter
- On-chip accurate reference and reference buffer
- 16-bit ADC with 200 kSPS on all channels
