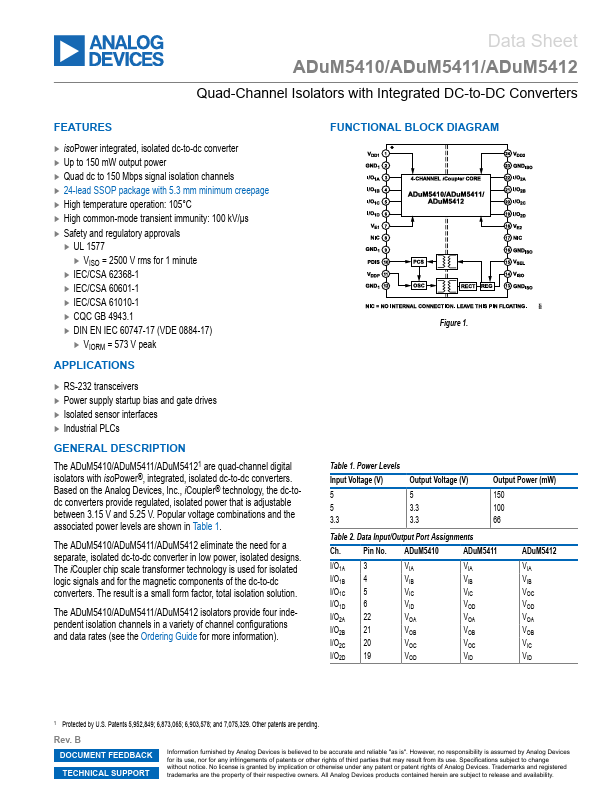

ADUM5411 Description
The ADuM5410/ADuM5411/ADuM54121 are quad-channel digital isolators with isoPower®, integrated, isolated dc-to-dc converters. Based on the Analog Devices, Inc., iCoupler® technology, the dc-todc converters provide regulated, isolated power that is adjustable between 3.15 V and 5.25 V. Popular voltage binations and the associated power levels are shown in Table.
ADUM5411 Key Features
- isoPower integrated, isolated dc-to-dc converter
- Up to 150 mW output power
- Quad dc to 150 Mbps signal isolation channels
- 24-lead SSOP package with 5.3 mm minimum creepage
- High temperature operation: 105°C
- High mon-mode transient immunity: 100 kV/µs
- Safety and regulatory approvals
- UL 1577
- VISO = 2500 V rms for 1 minute
- IEC/CSA 62368-1
