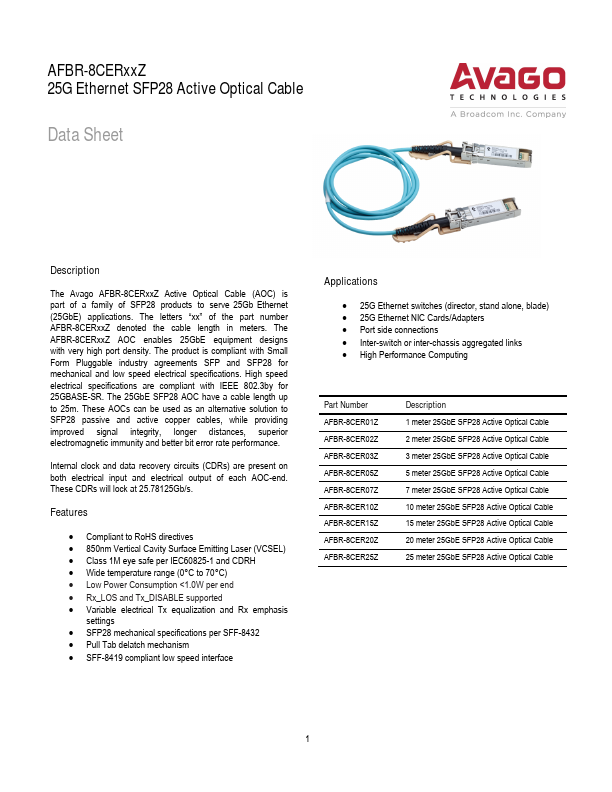

AFBR-8CER20Z Overview
The Avago AFBR-8CERxxZ Active Optical Cable (AOC) is part of a family of SFP28 products to serve 25Gb Ethernet (25GbE) applications. The letters “xx” of the part number AFBR-8CERxxZ denoted the cable length in meters. The AFBR-8CERxxZ AOC enables 25GbE equipment designs with very high port density.
AFBR-8CER20Z Key Features
- pliant to RoHS directives
- 850nm Vertical Cavity Surface Emitting Laser (VCSEL)
- Class 1M eye safe per IEC60825-1 and CDRH
- Wide temperature range (0°C to 70°C)
- Low Power Consumption <1.0W per end
- Rx_LOS and Tx_DISABLE supported
- Variable electrical Tx equalization and Rx emphasis
- SFP28 mechanical specifications per SFF-8432
- Pull Tab delatch mechanism
- SFF-8419 pliant low speed interface
