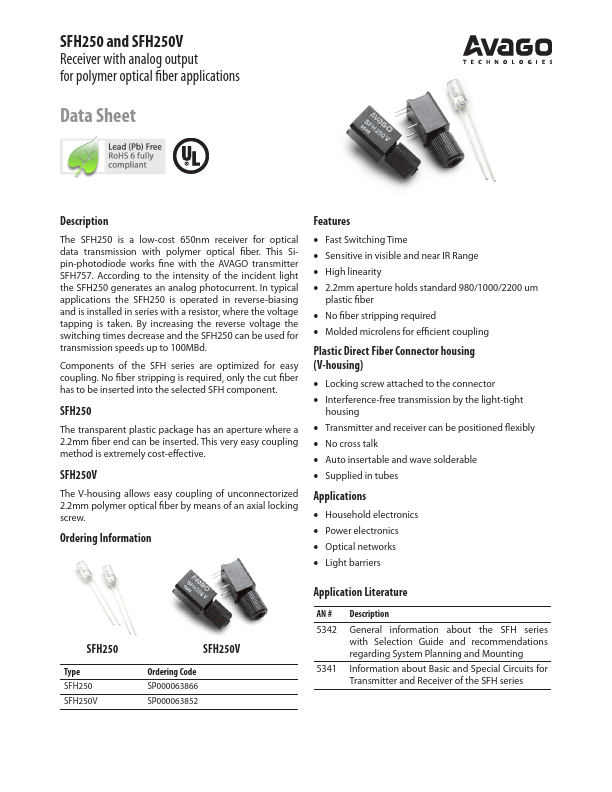

SFH250W Description
The SFH250 is a low-cost 650nm receiver for optical data transmission with polymer optical fiber. This Sipin-photodiode works fine with the AVAGO transmitter SFH757. According to the intensity of the incident light the SFH250 generates an analog photocurrent.
SFH250W Key Features
- Fast Switching Time
- Sensitive in visible and near IR Range
- High linearity
- 2.2mm aperture holds standard 980/1000/2200 um
- No fiber stripping required
- Molded microlens for efficient coupling
- Locking screw attached to the connector
- Interference-free transmission by the light-tight
- Transmitter and receiver can be positioned flexibly
- No cross talk
