HB140WX1-100 Datasheet Tft Lcd

Manufacturer: BOE

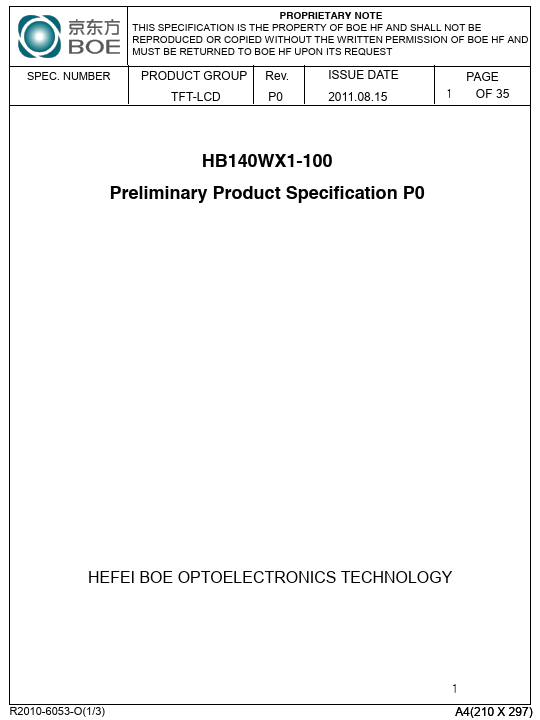

Overview: SPEC. NUMBER PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF BOE HF AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE HF AND MUST BE RETURNED TO BOE HF UPON ITS REQUEST PRODUCT GROUP Rev. TFT-LCD P0 ISSUE DATE 2011.08.15 PAGE 1 OF 35 HB140WX1-100 Preliminary Product Specification P0 EE22JJXX..CCOOMM HEFEI BOE OPTOELECTRONICS TECHNOLOGY R2010-6053-O(1/3) 1 A4(210 X 297) SPEC. NUMBER REV. P0 ECN No. - PRODUCT GROUP REV TFT- LCD PRODUCT P0 SPEC.

Datasheet Details

Part number HB140WX1-100
Manufacturer BOE
File Size 1.38 MB
Description TFT LCD
Datasheet HB140WX1-100-BOE.pdf

General Description

OF CHANGES Initial Release DATE 2011.08.15 ISSUE DATE 2011.08.15 PAGE 2 OF 35 PREPARED 秦锋 EE22JJXX..CCOOMM R2010-6053-O(2/3) 2 A4(210 X 297) SPEC.

NUMBER PRODUCT GROUP REV TFT- LCD PRODUCT P0 SPEC.

TITLE HB140WX1-100 Preliminary Product Specification Contents No.

Key Features

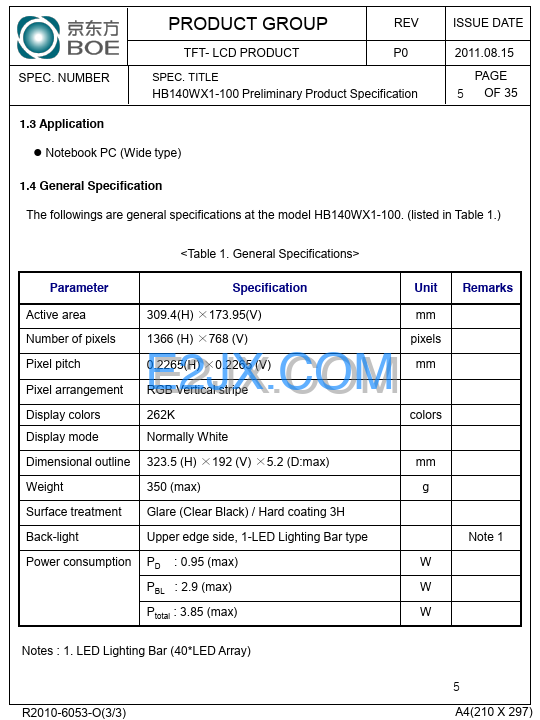

  • 1 Channel LVDS Interface with 1 pixel / clock.
  • Thin and light weight.
  • 6-bit color depth, display 262K colors.
  • Single LED Lighting Bar. (Top side/Horizontal Direction).
  • Data enable signal mode.
  • Side Mounting Frame.
  • Green Product (RoHS & Halogen free product).
  • On board LED Driving circuit.
  • Low driving voltage and low power consumption.
  • On board EDID chip R2010-6053-O(3/3) 4 A4(210 X 297).
