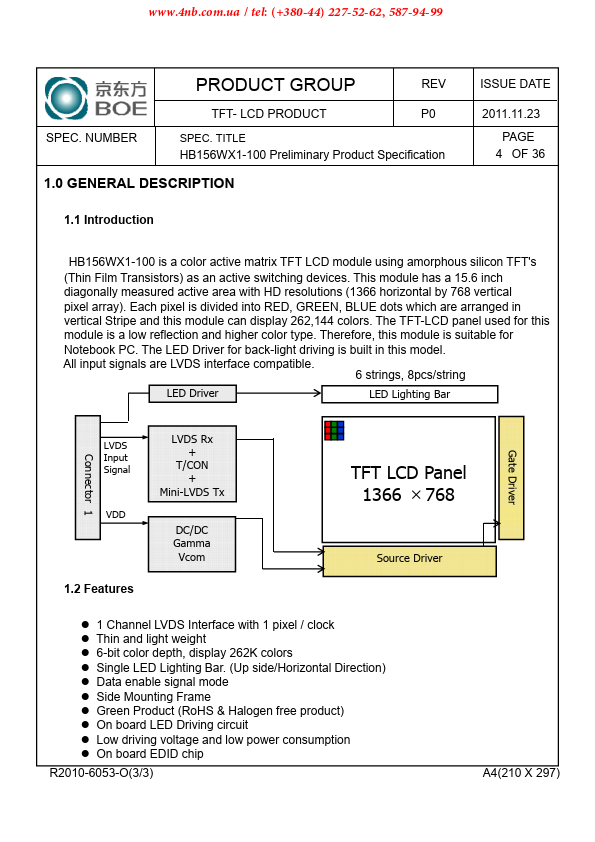

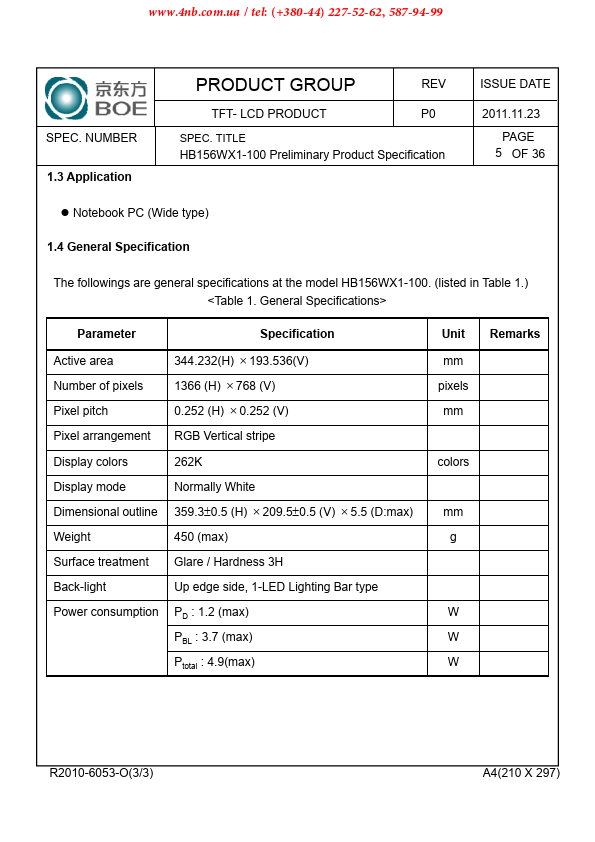

Overview: .4nb..ua / tel: (+380-44) 227-52-62, 587-94-99 SPEC. NUMBER PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF BOE HF AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE HF AND MUST BE RETURNED TO BOE HF UPON ITS REQUEST PRODUCT GROUP Rev. TFT-LCD P0 ISSUE DATE 2011.11.23 PAGE 1 OF 36 HB156WX1-100 Preliminary Product Specification P0 HEFEI BOE OPTOELECTRONICS TECHNOLOGY R2010-6053-O(1/3) A4(210 X 297) .4nb..ua / tel: (+380-44) 227-52-62, 587-94-99 SPEC. NUMBER REV. ECN No. P0 - PRODUCT GROUP REV ISSUE DATE TFT- LCD PRODUCT P0 SPEC. TITLE HB156WX1-100 Preliminary Product Specification REVISION HISTORY 2011.11.

Datasheet Details

Part number HB156WX1-100
Manufacturer BOE
File Size 1.51 MB
Description TFT LCD
Datasheet HB156WX1-100-BOE.pdf

General Description

OF CHANGES Initial release DATE PREPARED 2011.11.23 田广彦 刘晓鹏 R2010-6053-O(2/3) A4(210 X 297) .4nb..ua / tel: (+380-44) 227-52-62, 587-94-99 SPEC.

NUMBER PRODUCT GROUP REV TFT- LCD PRODUCT P0 SPEC.

TITLE HB156WX1-100 Preliminary Product Specification Contents No.

Key Features

  • LVDS Rx + T/CON + Mini-LVDS Tx DC/DC Gamma Vcom TFT LCD PanelBACK LIGHT (Fluorescent Lamp) 1366 ×768 Source Driver.
  • 1 Channel LVDS Interface with 1 pixel / clock.
  • Thin and light weight.
  • 6-bit color depth, display 262K colors.
  • Single LED Lighting Bar. (Up side/Horizontal Direction).
  • Data enable signal mode.
  • Side Mounting Frame.
  • Green Product (RoHS & Halogen free product).
  • On board LED Driving circuit.
  • Low driving voltage and low power consumption.
