HT140WXB-100 - TFT LCD

General Description

DATE 2009.6.27.

SPEC.

ISSUE DATE 2009.6.27.

Key Features

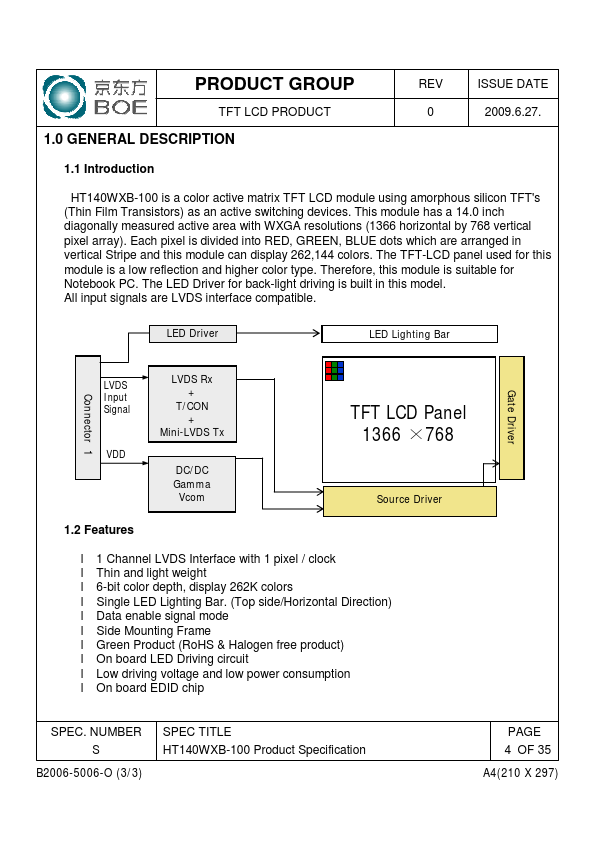

  • l 1 Channel LVDS Interface with 1 pixel / clock l Thin and light weight l 6-bit color depth, display 262K colors l Single LED Lighting Bar. (Top side/Horizontal Direction) l Data enable signal mode l Side Mounting Frame l Green Product (RoHS & Halogen free product) l On board LED Driving circuit l Low driving voltage and low power consumption l On board EDID chip SPEC. NUMBER S B2006-5006-O (3/3) SPEC TITLE HT140WXB-100 Product Specification PAGE 4 OF 35 A4(210 X 297).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HT14 High Efficient Rectifiers Taiwan Semiconductor
HT14G Glass Passivated High Efficient Rectifiers Taiwan Semiconductor
HT14P11-100 TFT LCD Hyundai
HT14X11 Connection Table Hyundai
HT14X11-103 LCD SBU Hyundai

Other Datasheets by BOE

Part Number Description
HT140WXB-101 TFT LCD Module
HT140WXB-501 TFT LCD Module
HT140WXB-601 TFT LCD Module
HT141WX1-101 TFT LCD
HT141WXB-100 LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

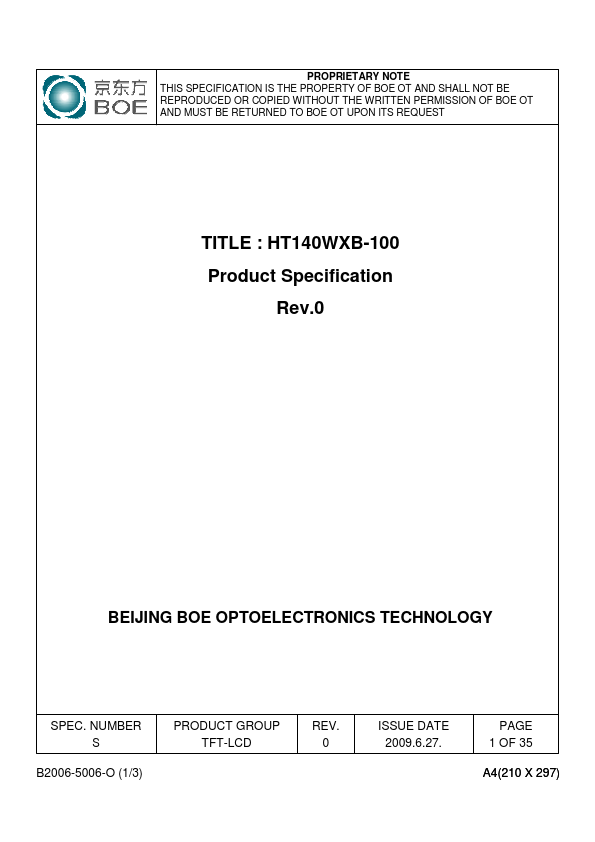

PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF BOE OT AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OT AND MUST BE RETURNED TO BOE OT UPON ITS REQUEST TITLE : HT140WXB-100 Product Specification Rev.0 BEIJING BOE OPTOELECTRONICS TECHNOLOGY SPEC. NUMBER S B2006-5006-O (1/3) PRODUCT GROUP TFT-LCD REV. 0 ISSUE DATE 2009.6.27. PAGE 1 OF 35 A4(210 X 297) PRODUCT GROUP TFT LCD PRODUCT REV 0 ISSUE DATE 2009.6.27. REV. 0 ECN NO. - REVISION HISTORY DESCRIPTION OF CHANGES Initial Release DATE 2009.6.27. PREPARED Xu Yubo SPEC. NUMBER S B2006-5006-O (2/3) SPEC TITLE HT140WXB-100 Product Specification PAGE 2 OF 35 A4(210 X 297) PRODUCT GROUP TFT LCD PRODUCT REV 0 ISSUE DATE 2009.6.27. Contents No. Items 1.0 General Description 2.
