H8050 Datasheet NPN Smd Transistors

Manufacturer: BRIGHT SEMICONDUCTOR

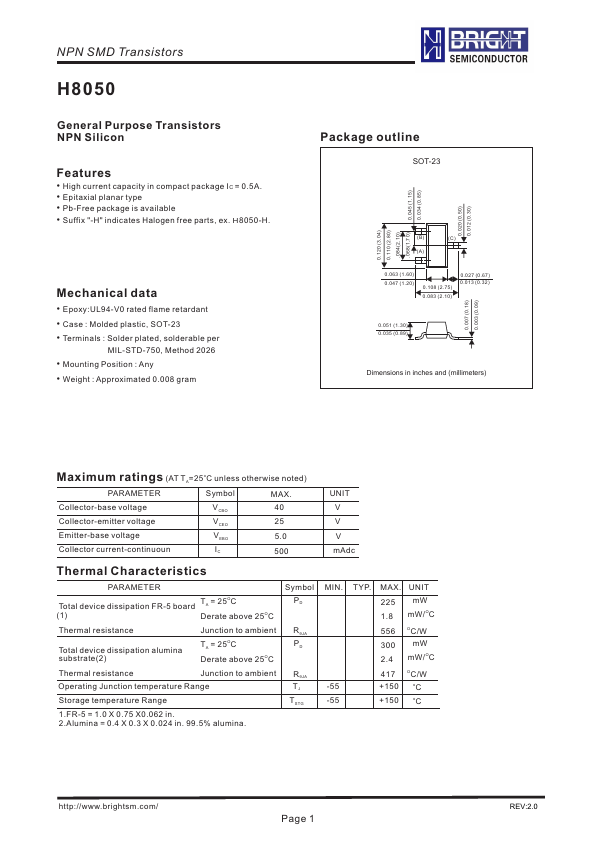

Overview: NPN SMD Transistors H8050 General Purpose Transistors NPN Silicon.

Datasheet Details

Part number H8050
Manufacturer BRIGHT SEMICONDUCTOR
File Size 400.81 KB
Description NPN SMD Transistors
Datasheet H8050-BRIGHTSEMICONDUCTOR.pdf

Key Features

  • High current capacity in compact package IC = 0.5A.
  • Epitaxial planar type.
  • Pb-Free package is available.
  • Suffix "-H" indicates Halogen free parts, ex. H8050-H. Mechanical data.
  • Epoxy:UL94-V0 rated flame retardant.
  • Case : Molded plastic, SOT-23.
  • Terminals : Solder plated, solderable per MIL-STD-750, Method 2026.
  • Mounting Position : Any.
  • Weight : Approximated 0.008 gram Package outline SOT-23 0.045 (1.15) 0.034 (0.
