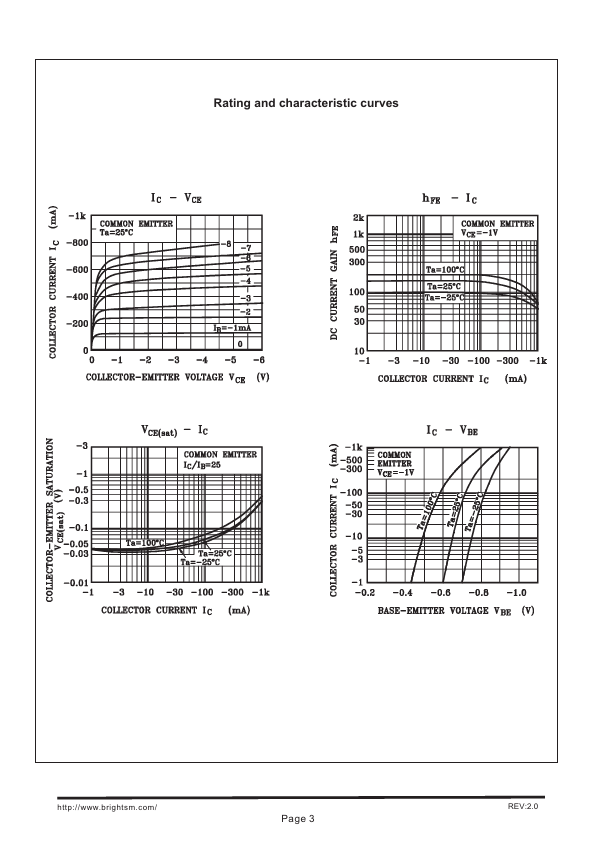

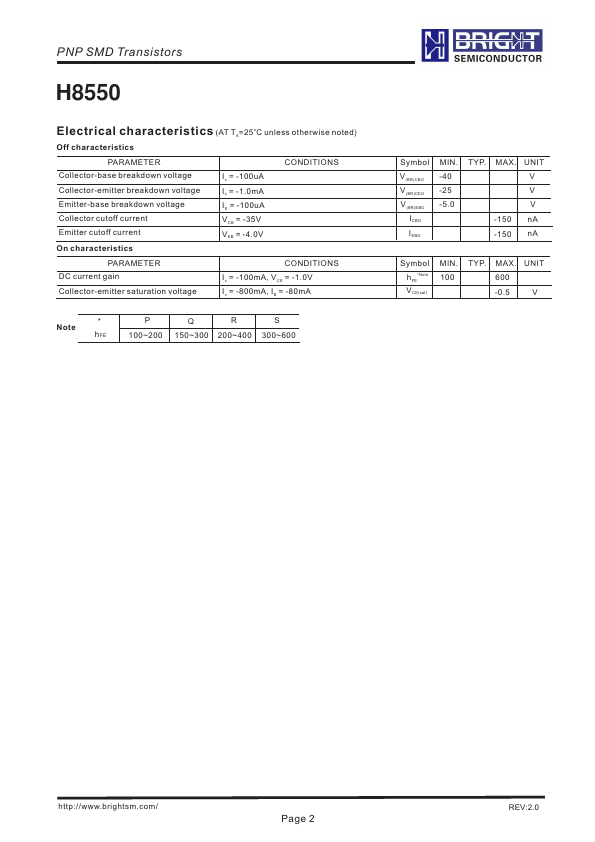

H8550
H8550 is PNP SMD Transistors manufactured by BRIGHT SEMICONDUCTOR.
PNP SMD Transistors
General Purpose Transistors PNP Silicon
Features
- High current capacity in pact package IC = -0.8A.
- Epitaxial planar type
- Pb-free package is available
- Suffix "-H" indicates Halogen free parts, ex. H8550P.
Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-23
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Mounting Position : Any
- Weight : Approximated 0.008 gram

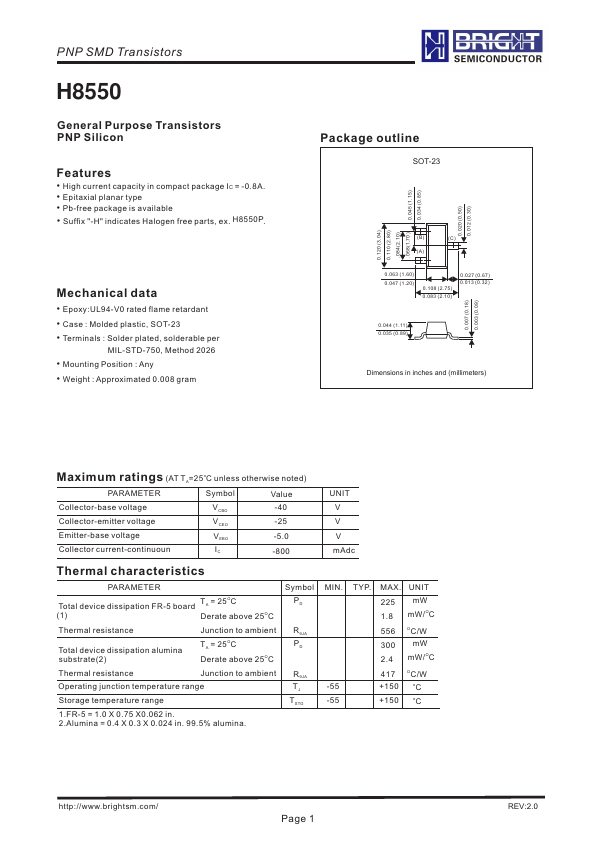

Package outline
SOT-23
0.045 (1.15) 0.034 (0.85)
0.020 (0.50) 0.012 (0.30)
0.120 (3.04) 0.110 (2.80) .084(2.10) .068(1.70)
(B)
(C)
(A)
0.063 (1.60) 0.047 (1.20)
0.108 (2.75) 0.083 (2.10)
0.027 (0.67) 0.013 (0.32)
0.007 (0.18)...
