H8550 Datasheet PNP Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type PNP Transistors H8550 Transistors ■.

📥 Download Datasheet

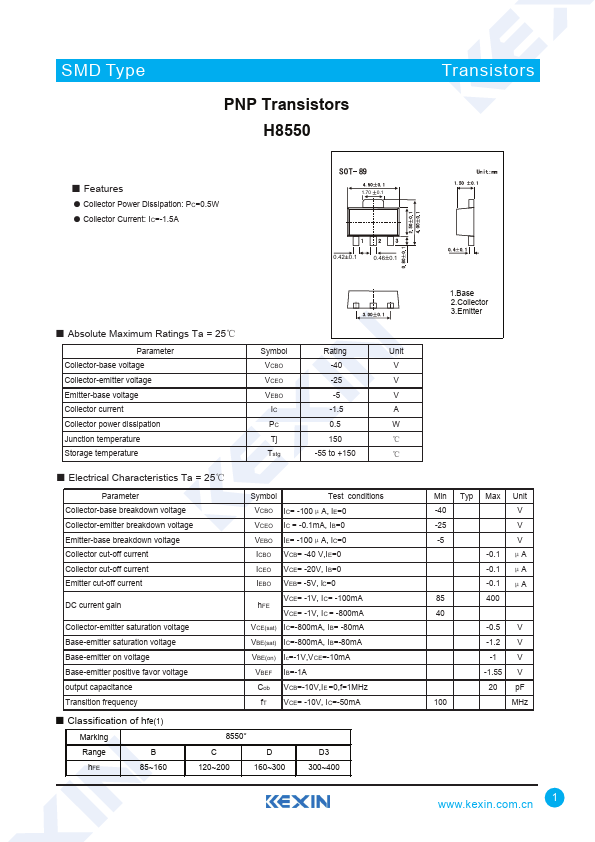

H8550 pnp transistors by Kexin Semiconductor - Datasheet Preview

Datasheet Details

Part number	H8550
Manufacturer	Kexin Semiconductor
File Size	697.27 KB
Description	PNP Transistors
Download	H8550 Download (PDF)

Key Features

s.
Collector Power Dissipation: PC=0.5W.
Collector Current: IC=-1.5A 1.70 0.1 0.42 0.1 0.46 0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO -40 V VCEO -25 V VEBO -5 V IC -1.5 A PC 0.5 W Tj 150 ℃ Tstg -55 to +150 ℃.
Electrical Characteristics Ta = 25℃ Parameter Collec.
