HBM2307S Datasheet 30v P-channel Enhancement Mode MOSFET

Manufacturer: BRIGHT SEMICONDUCTOR

Overview: SMD MOSFET HBM2307S 30V P-Channel Enhancement Mode MOSFET.

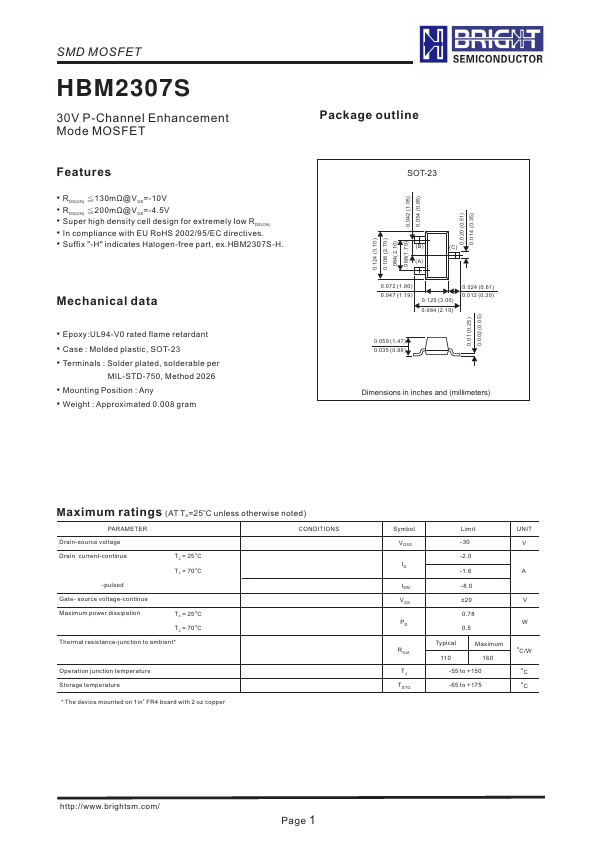

HBM2307S datasheet preview

Datasheet Details

Part number	HBM2307S
Manufacturer	BRIGHT SEMICONDUCTOR
File Size	823.09 KB
Description	30V P-Channel Enhancement Mode MOSFET
Datasheet	HBM2307S-BRIGHTSEMICONDUCTOR.pdf

Key Features

RDS(ON) ≦130mΩ@VGS=-10V.
RDS(ON) ≦200mΩ@VGS=-4.5V.
Super high density cell design for extremely low RDS(ON).
In compliance with EU RoHS 2002/95/EC directives.
Suffix "-H" indicates Halogen-free part, ex. HBM2307S-H. Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, SOT-23.
Terminals : Solder plated, solderable per MIL-STD-750, Method 2026.
Mounting Position : Any.
Weight : Approx.
