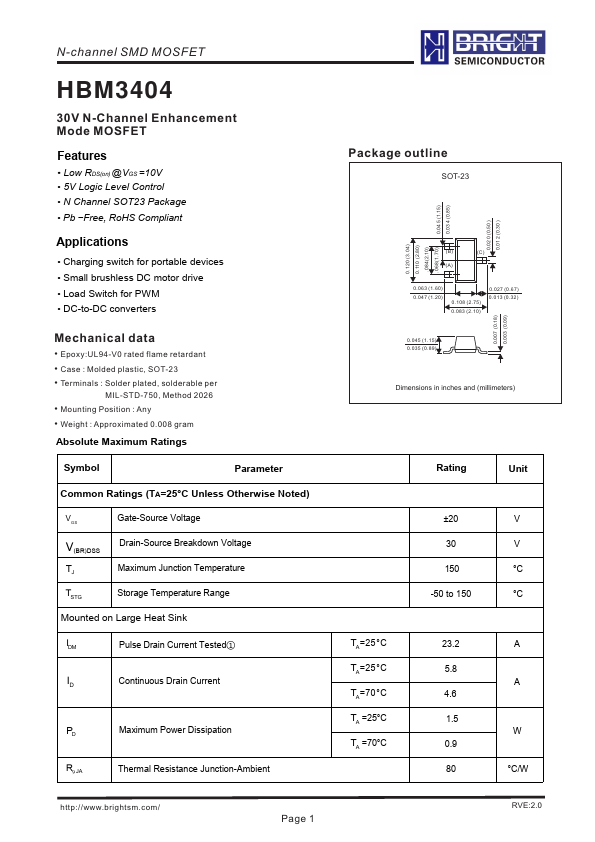

HBM3404
HBM3404 is 30V N-Channel Enhancement Mode MOSFET manufactured by BRIGHT SEMICONDUCTOR.
N-channel SMD MOSFET
30V N-Channel Enhancement Mode MOSFET
Features
- Low RDS(on) @VGS =10V
- 5V Logic Level Control
- N Channel SOT23 Package
- Pb
- Free, RoHS pliant
Applications
- Charging switch for portable devices
- Small brushless DC motor drive
- Load Switch for PWM
- DC-to-DC converters
Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-23
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Mounting Position : Any
- Weight : Approximated 0.008...
