BCT3024 Datasheet 24-CHANNELS LED DRIVER

Manufacturer: BROADCHIP

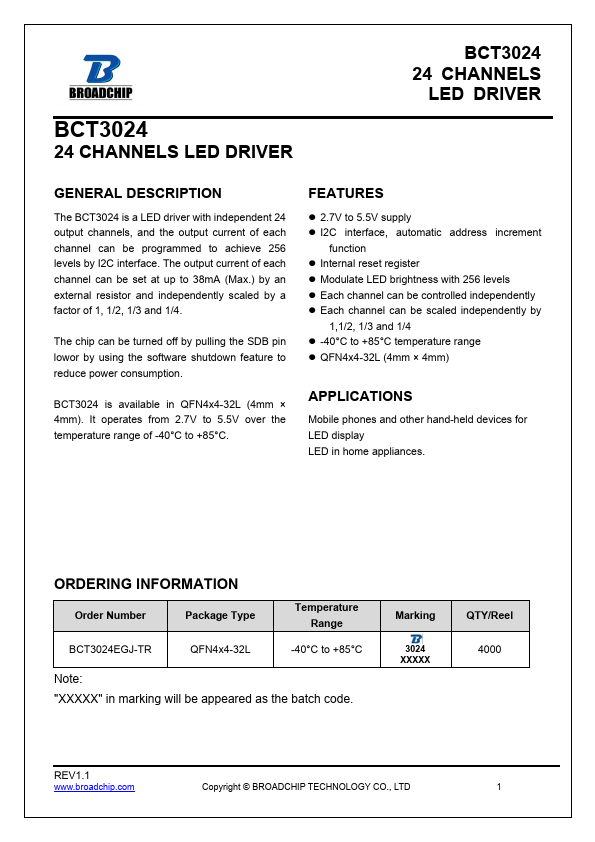

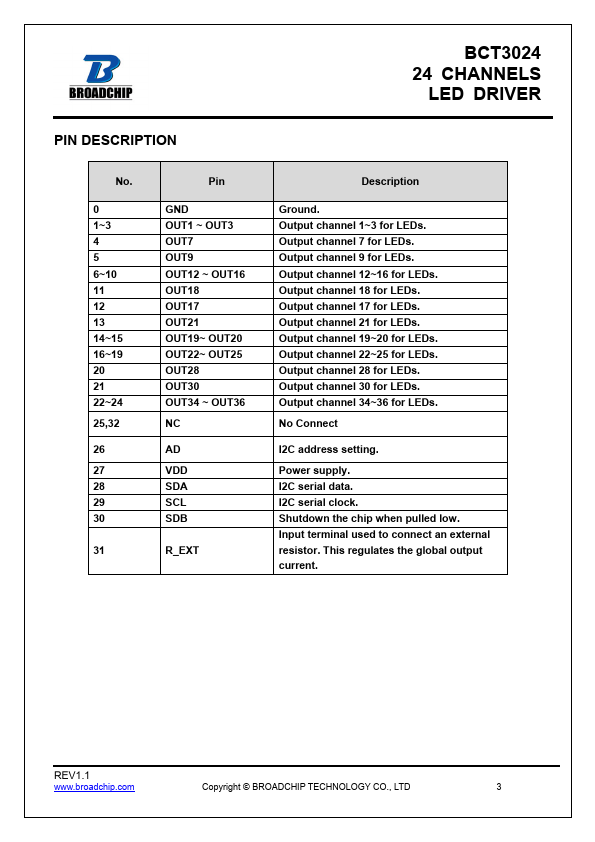

BCT3024 24-channels led driver by BROADCHIP - Datasheet Preview

Datasheet Details

Part number	BCT3024
Manufacturer	BROADCHIP
File Size	795.24 KB
Description	24-CHANNELS LED DRIVER
Datasheet	BCT3024 Datasheet

General Description

The BCT3024 is a LED driver with independent 24 output channels, and the output current of each channel can be programmed to achieve 256 levels by I2C interface.

The output current of each channel can be set at up to 38mA (Max.) by an external resistor and independently scaled by a factor of 1, 1/2, 1/3 and 1/4.

The chip can be turned off by pulling the SDB pin lowor by using the software shutdown

Overview

BCT3024 24 CHANNELS LED DRIVER BCT3024 24 CHANNELS LED DRIVER.

Key Features

2.7V to 5.5V supply.
I2C interface, automatic address increment function.
Internal reset register.
Modulate LED brightness with 256 levels.
Each channel can be controlled independently.
Each channel can be scaled independently by 1,1/2, 1/3 and 1/4.
-40°C to +85°C temperature range.

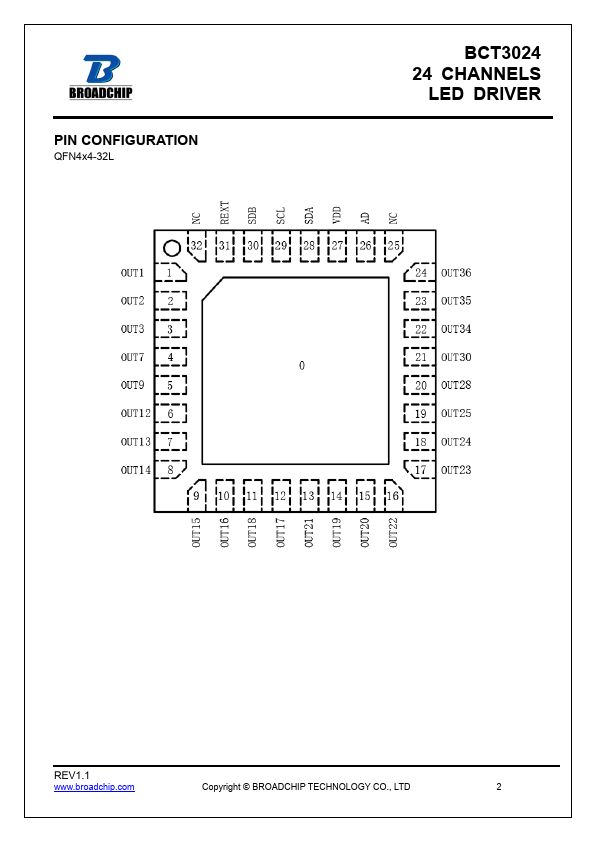

QFN4x4-32L (4mm × 4mm).
