BCT3144 - High Efficiency Synchronous Boost Converter

Description

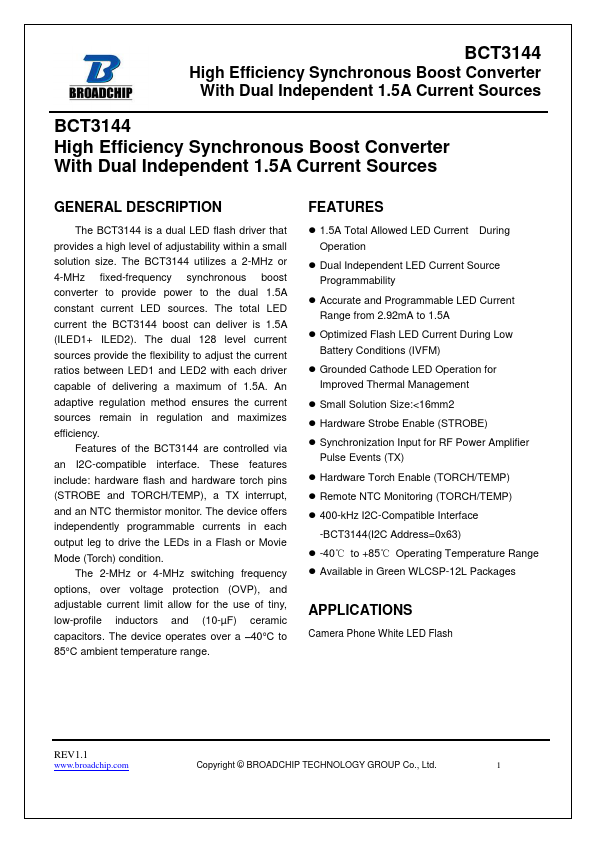

The BCT3144 is a dual LED flash driver that provides a high level of adjustability within a small solution size.

The BCT3144 utilizes a 2-MHz or 4-MHz fixed-frequency synchronous boost converter to provide power to the dual 1.5A constant current LED sources.

Features

  • of the BCT3144 are controlled via an I2C-compatible interface. These features include: hardware flash and hardware torch pins (STROBE and TORCH/TEMP), a TX interrupt, and an NTC thermistor monitor. The device offers independently programmable currents in each output leg to drive the LEDs in a Flash or Movie Mode (Torch) condition. The 2-MHz or 4-MHz switching frequency options, over voltage protection (OVP), and adjustable current limit allow for the use of tiny, low-profile inductors and (10-µF.

📥 Download Datasheet

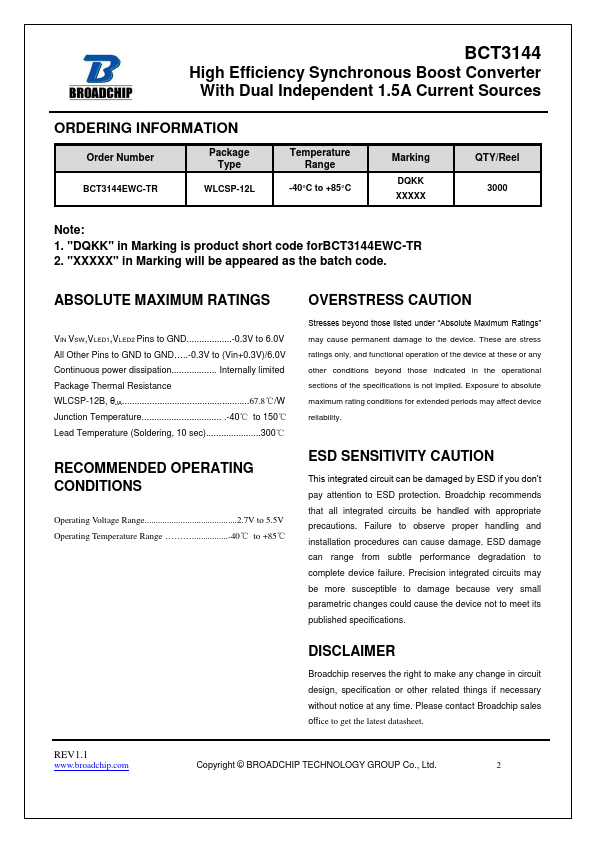

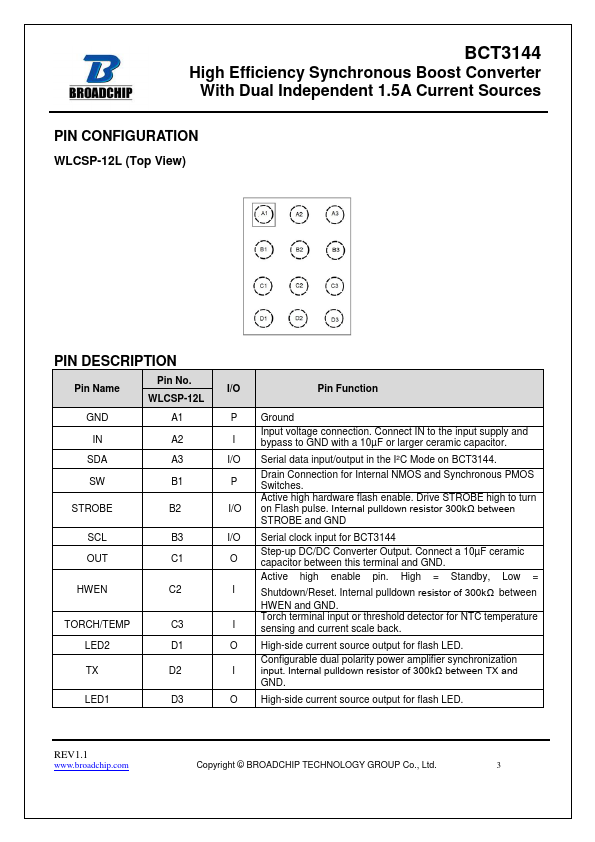

Datasheet Details

Part number BCT3144
Manufacturer BROADCHIP
File Size 1.22 MB
Description High Efficiency Synchronous Boost Converter
Datasheet download datasheet BCT3144 Datasheet
